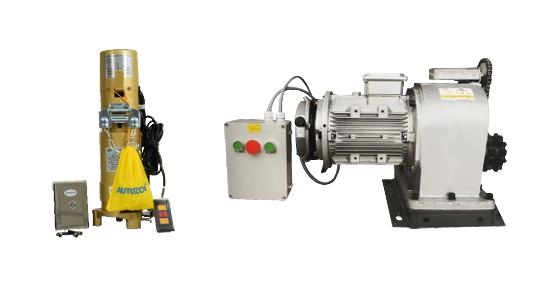

ROLLING SHUTTER OPERATOR
Model No: AZRS400/ AZRS600/ AZRS800/ AZRS1000 1P/ AZRS1000 3P/AZRS1500 1P/AZRS1500 3P/AZRS2000 3P/AZRS3000 3P/AZRS4000 3P
Crafted from high-strength aluminum alloy, the motor ensures efficient, low-noise, and long-lasting performance. It supports remote and manual control with enhanced security, suitable for garages, malls, and industrial spaces.
Description
Light and handy, superior quality: The motor case are pressure-cast with high strength aluminum alloy.
Less noise, long cycle life: Reduction gear is made of high quality alloy, heat resistant with less noise.
High power and fast: The motor is efficiently-designed, all components are made of superior materials with minimum time and energy.
Power failure: In times of the power failure, pulling chain by hand may li the door up, and pulling the clutch lever may let the door down.
Easy operation, safety and security: There are several ways of controlling, by using remote controller, hand control, and pulling chain by hand when power is failure. And to keep from breaking in, you could also lock the hand controlling by remote controller.

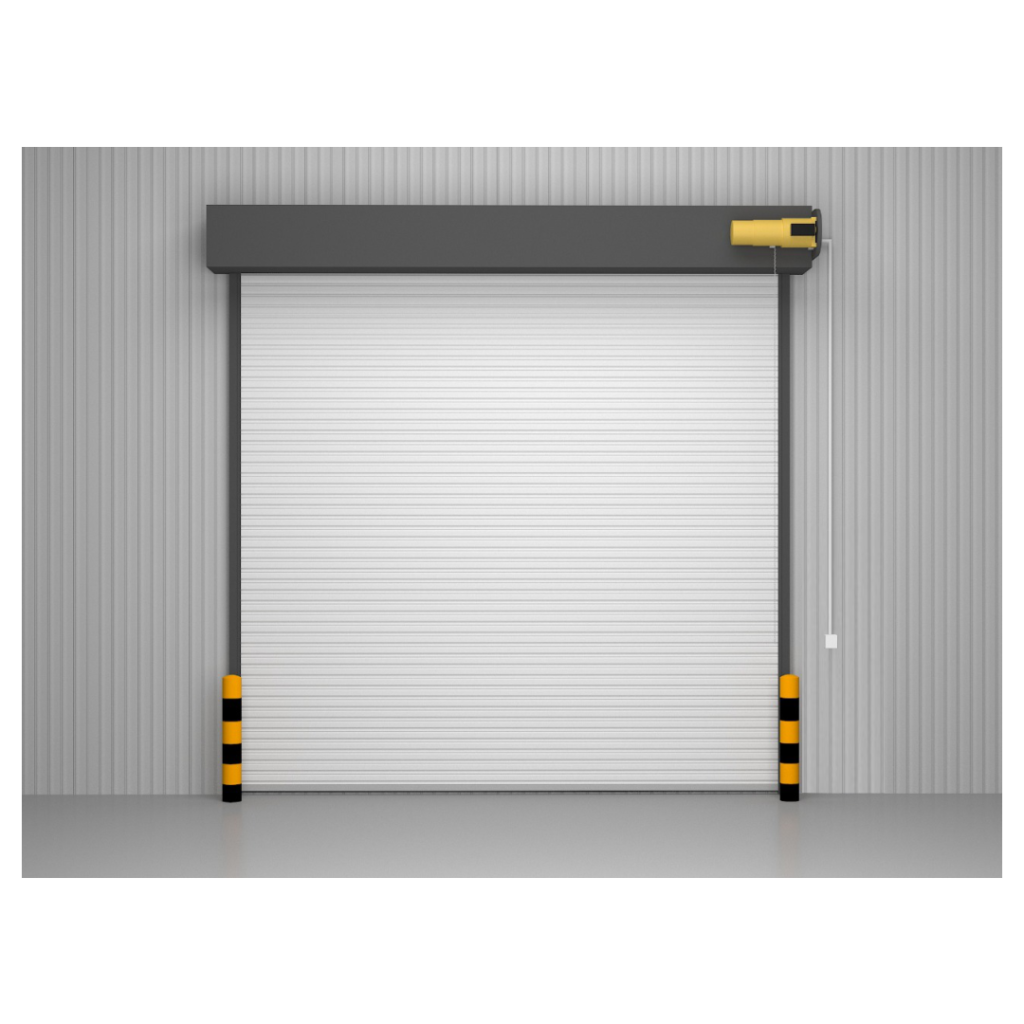

Suitable for: garages, shops, malls, exhibition halls, museums, factories, warehouses and etc.
|
MODEL
|
POWER SOURCE
|
RATED POWER (W)
|
RATED CURRENT(A)
|
LIFTING POWER (Kg.f)
|
OUTPUT TORQUE(Nm)
|
OUTPUT SPEED (RPM)
|
TUBE DIAMETER (mm)
|
CONTINUED WORKING TIME (Min)
|
MAX HEIGHT (M)
|
MOTOR & BRACKET WEIGHT (Kg)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
AZRS400
|
220 V - 240 V AC
|
250
|
2.8
|
400
|
168
|
5.0
|
100
|
5
|
6
|
M 10.6 / B 12.7
|
|
AZRS600
|
220 V - 240 V AC
|
370
|
3.3
|
600
|
412
|
4.8
|
150
|
5
|
6
|
M 12.2 / B 14.5
|
|
AZRS800
|
220 V - 240 V AC
|
550
|
4.7
|
800
|
647
|
4.0
|
150
|
5
|
9
|
M 15.8 / B 18.3
|
|
AZRS1000 1P
|
220 V - 240 V AC
|
450
|
4.9
|
1000
|
809
|
3.5
|
150
|
5
|
9
|
M 15 .7/ B 26
|
|
AZRS1000 3P
|
380 V - 420 V AC
|
450
|
2.8
|
1000
|
809
|
3.5
|
150
|
5.2
|
9
|
M 15.7 / B 26
|
|
AZRS1500 1P
|
220 V - 240 V AC
|
750
|
3.7
|
1500
|
1580
|
5.0
|
200
|
5.2
|
9
|
M 25 / B 34.8
|
|
AZRS1500 3P
|
380 V - 420 V AC
|
800
|
3.8
|
1500
|
1617
|
5.2
|
200
|
5.2
|
9
|
M 22.2 / B 34.8
|
|
AZRS2000 3P
|
380 V - 420 V AC
|
1000
|
4.1
|
2000
|
2450
|
3.6
|
200
|
7.0
|
12
|
M 28 / B 52
|
|
AZRS3000 3P
|
380 V - 420 V AC
|
1500
|
3.71
|
3000
|
3450
|
3.3
|
200
|
7.5
|
15
|
M 84 / B 122
|
|
AZRS4000 3P
|
380 V - 420 V AC
|
3000
|
6.7
|
4000
|
5500
|
3.2
|
250
|
7.5
|
15
|
M85 / B 128
|
