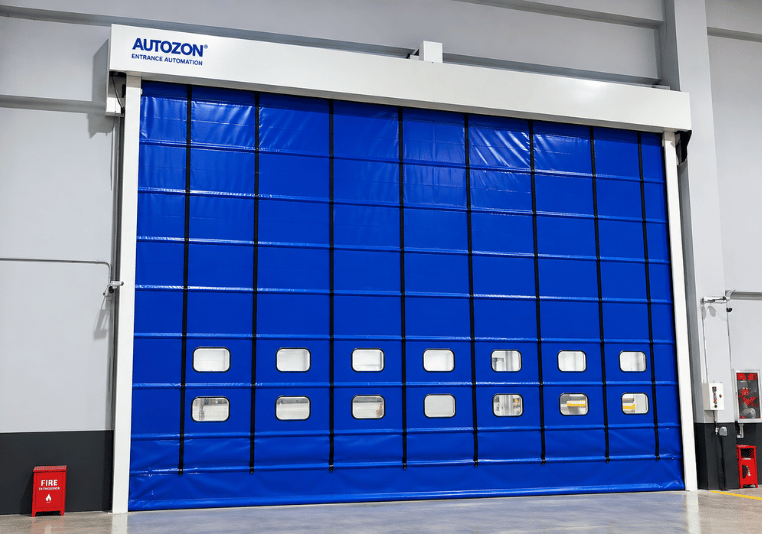

FREEZER HIGH SPEED DOOR

PRODUCT DESCRIPTION
• The Fast Pack Door, emphasizing its suitability for outdoor and industrial use.
• It is designed to withstand external weather conditions, offers large opening capacity for easy movement, and provides strong wind resistance for stability.
• The foldable curtain technology ensures smooth and fast operation, while its low-maintenance design reduces service requirements.
• Additionally, it ensures maximum safety during operation and includes a double-layer curtain for enhanced durability and insulation.
• Fast Pack Doors are equipped with advanced safety features such as sensors, soft bottom edges, and automatic stop functions to
prevent accidents.
• Their robust construction, low maintenance requirement, and reliable performance make them a perfect solution for modern industrial operations requiring speed, safety, and efficiency.
• The high-speed performance enhances energy efficiency and supports better hygiene control, especially in clean or controlled environments.
Technical Specifications:
| Technical Specification | AZFPHSD-544 |
|---|---|
| Usage | Internal / External |
| Maximum Width | 2000mm~7500mm |
| Maximum Height | 2000mm~6000mm |
| Opening Direction | Vertical class |
| Powder Coated | Yes |
| Opening speed (Adjustable) | up to 0.5 m/s |
| Closing speed (Adjustable) | up to 0.8 m/s |
| fabric Thickness | 0.9 to 1.5 mm |
| Emergency Opening | Crank Handle |
| Security Features | EN 13241-1 mm |
| OPERATOR & CONTROL | Details |
|---|---|
| Connecting Voltage | 230V |
| Open, Stop, Close Button | STANDARD |
| Protection Category (Operator / Control) | IP 54 / IP 65 |
| Electronic Limit Switch | Standard |
| Emergency Push Button | Standard |
| Bottom Edge Safety Sensor | Optional |
| Radar Sensor | Optional |
