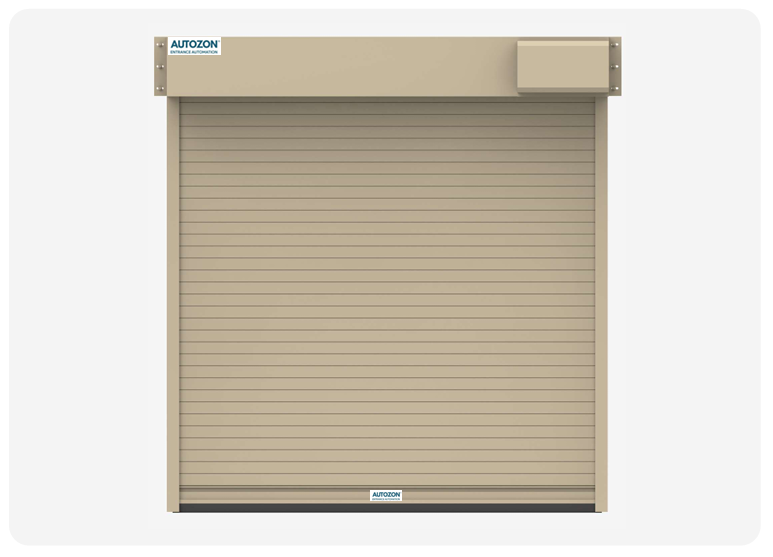

Wind Resistance Rolling Shutter
PRODUCT DESCRIPTION
• Wind resistance rolling shutters are designed to protect buildings from wind damage, especially in areas prone to storms, hurricanes, or high winds.
• These shutters are made with strong materials and built with specific features to resist the force of wind, preventing damage to the shutters.
• Roller shutter become more wind-resistant by using wind-locking guides and lath. This is a mechanical design that prevents the slats of the shutter from flexing too heavily and blowing out of the guide channels.
• High wind speeds can cause very high pressure forces to act on the shutters then damage is almost always caused as a result. For this reason most shutters do have some level of wind resistance factored into their design.
• TUV & CE Certified Manufactured in Accordance with En13241.
• Slat, Guide Channel, Bo om Profile & Hood Cover finish is paint or powder coat.
PERFORMANCE AND APPLICATION
Wind-resistant roller shutters are essential in industrial settings like production facilities, factories, and warehouses, where robust protection against wind is crucial.
• The main feature of wind-resistant rolling shutter doors is their ability to resist the forces exerted by strong winds.
• They are manufactured in-house, ensuring expert installation and ongoing support.

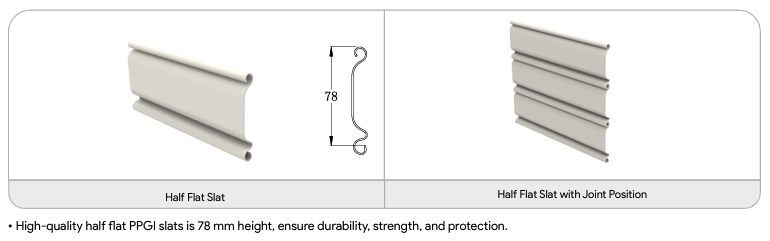

HALF FLAT SLATS AND VARIATIONS

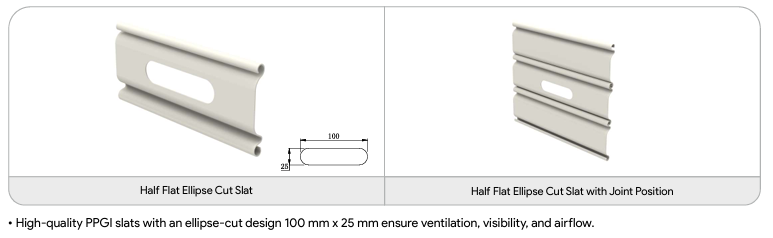

HALF FLAT SLAT WITH ELLIPSE CUT
HALF FLAT SLAT WITH PERFORATED

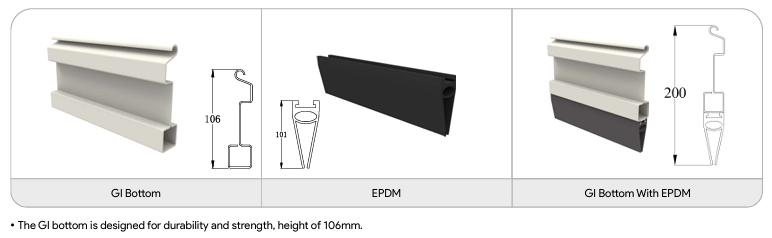

GI BOTTOM CHANNEL

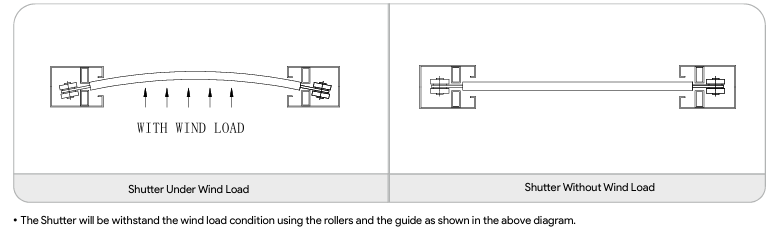

WIND LOAD SYNARIO

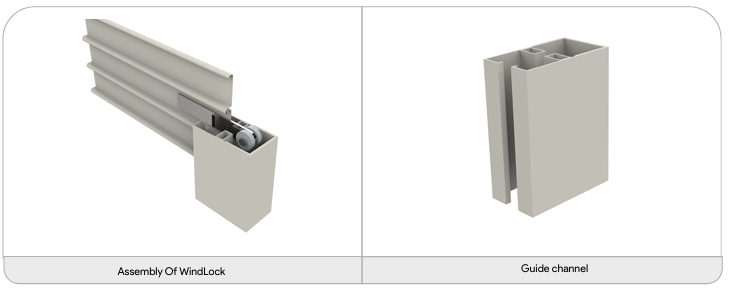

GUIDE CHANNEL AND THE ASSEMBLY

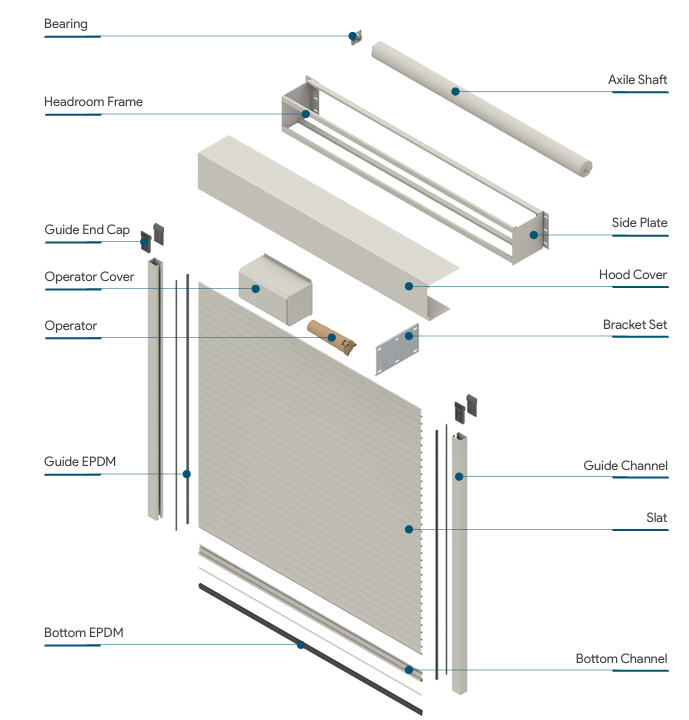

PRODUCT STRUCTURE
AVAILABLE COLORS
