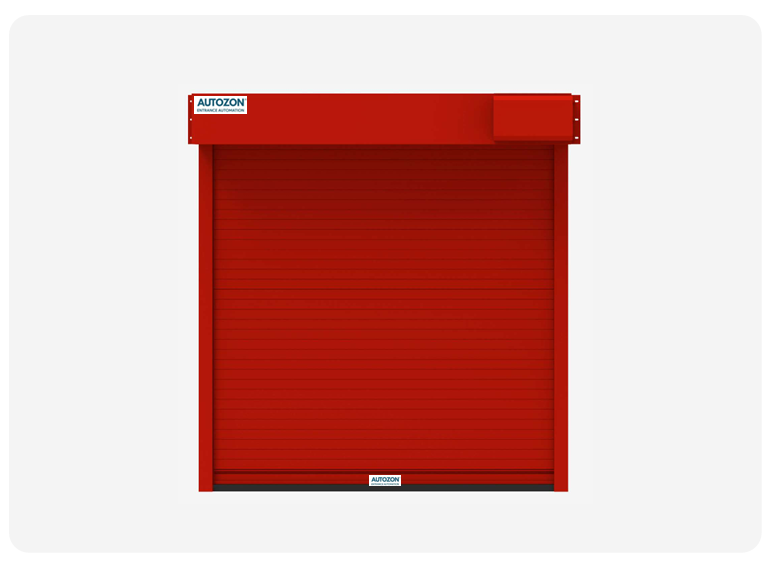

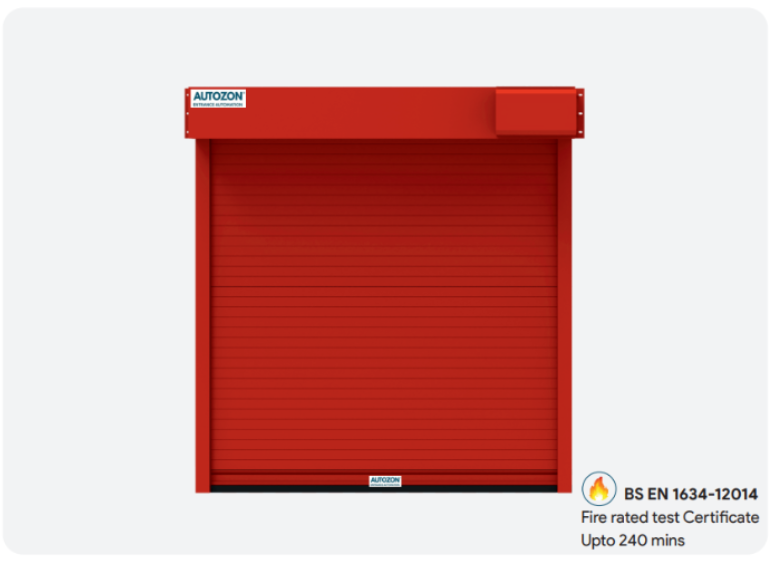

Fire Rated Double Wall Galvalume Rolling Shutter
PRODUCT DESCRIPTION
A fire-rated rolling shutter is a specialized type of rolling shutter designed to prevent the spread of re and smoke in buildings.
• These shutters are made from re-resistant materials and are tested to withstand high temperatures for a specific period usually 1 to 4 hours, depending on the re rating.
• Industrial Fire rated rolling shutters are widely used in sensitive areas such as boiler room, battery room, etc. areas that have high re risk.
• Fire-rated rolling shutters often have double-layered slats with insulated rock wool to enhance fire resistance and improve the fire safety system.
• Manual & Motorized Operation – Can be operated manually or with an electric motor, often integrated with a building’s fire safety system.
• Slat, Guide Channel, Bo om Pro le & Hood Cover finish are Epoxy primer with PU Paint.
PERFORMANCE AND APPLICATION
This Fire Rated Rolling Shutters designed to stay open under normal circumstances, and close automatically in the event of a re is structured and constructed to prevent the spread of re to adjoining areas.
• The door comes down gradually in case of fire, automatically after receiving a signal from the fusible link.
• All components of our shutters are made from High Grade Steel.
• The doors can include additional safety and operational devices such as smoke detectors and fire sensors.
• Seamlessly integrate your shutters into a Building Management System (BMS) if required, for comprehensive control and monitoring capabilities

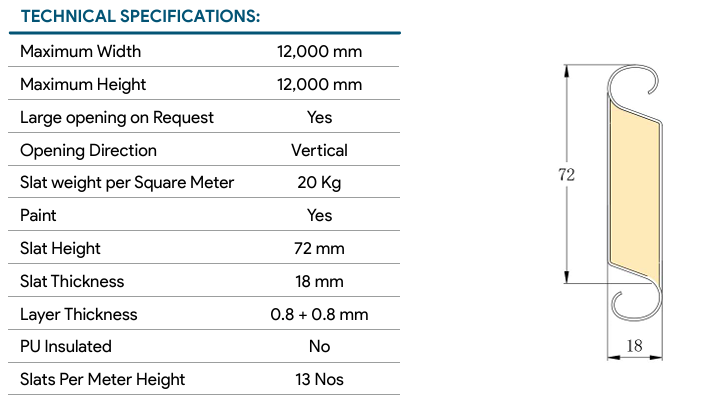

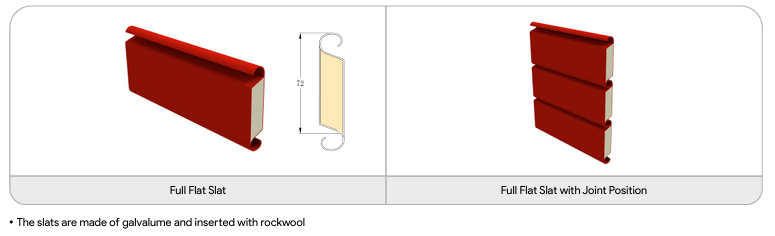

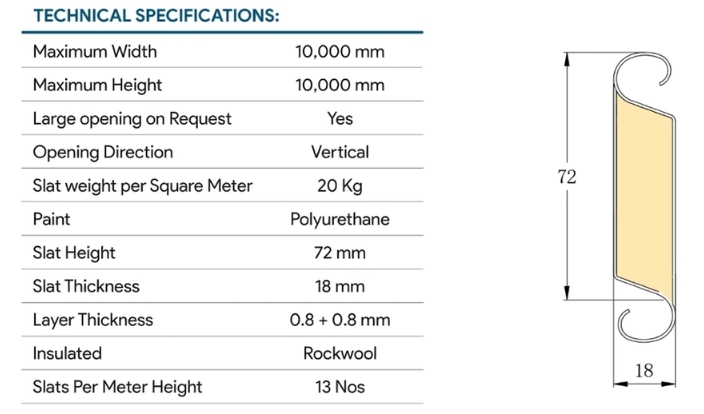

FIRE RATED SLAT

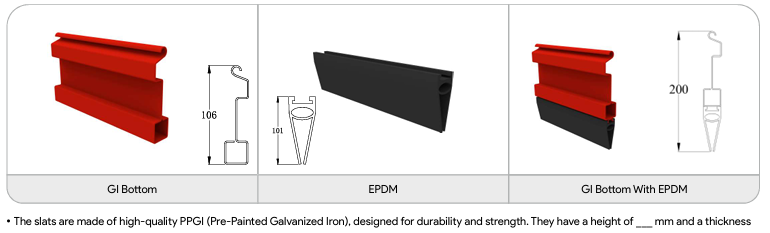

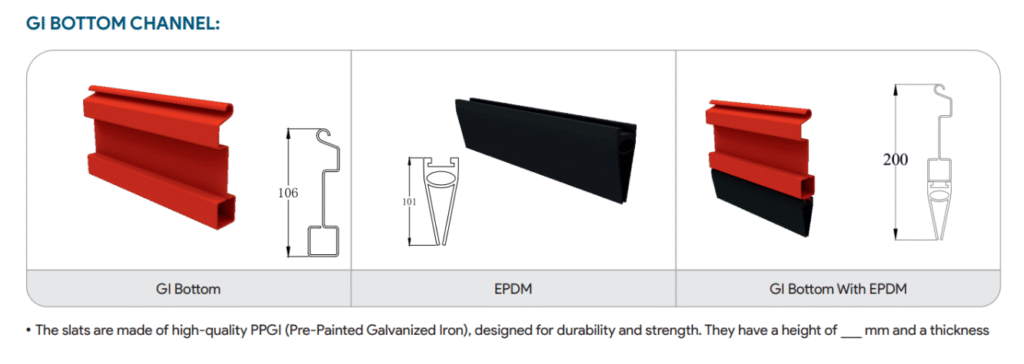

GI BOTTOM CHANNEL

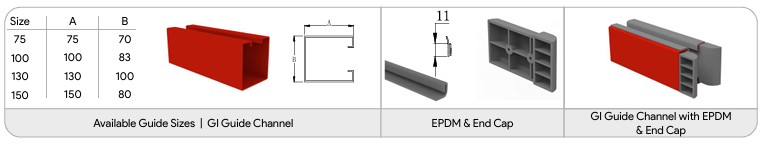

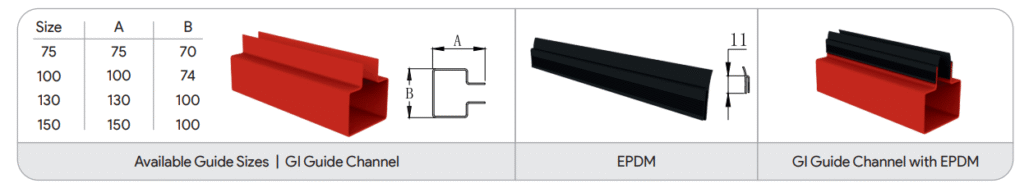

INNER BEND GUIDE CHANNEL

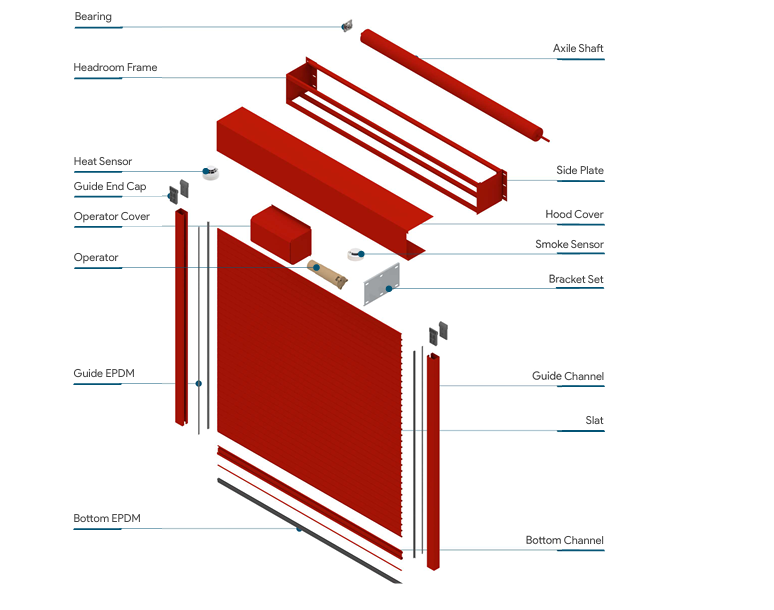

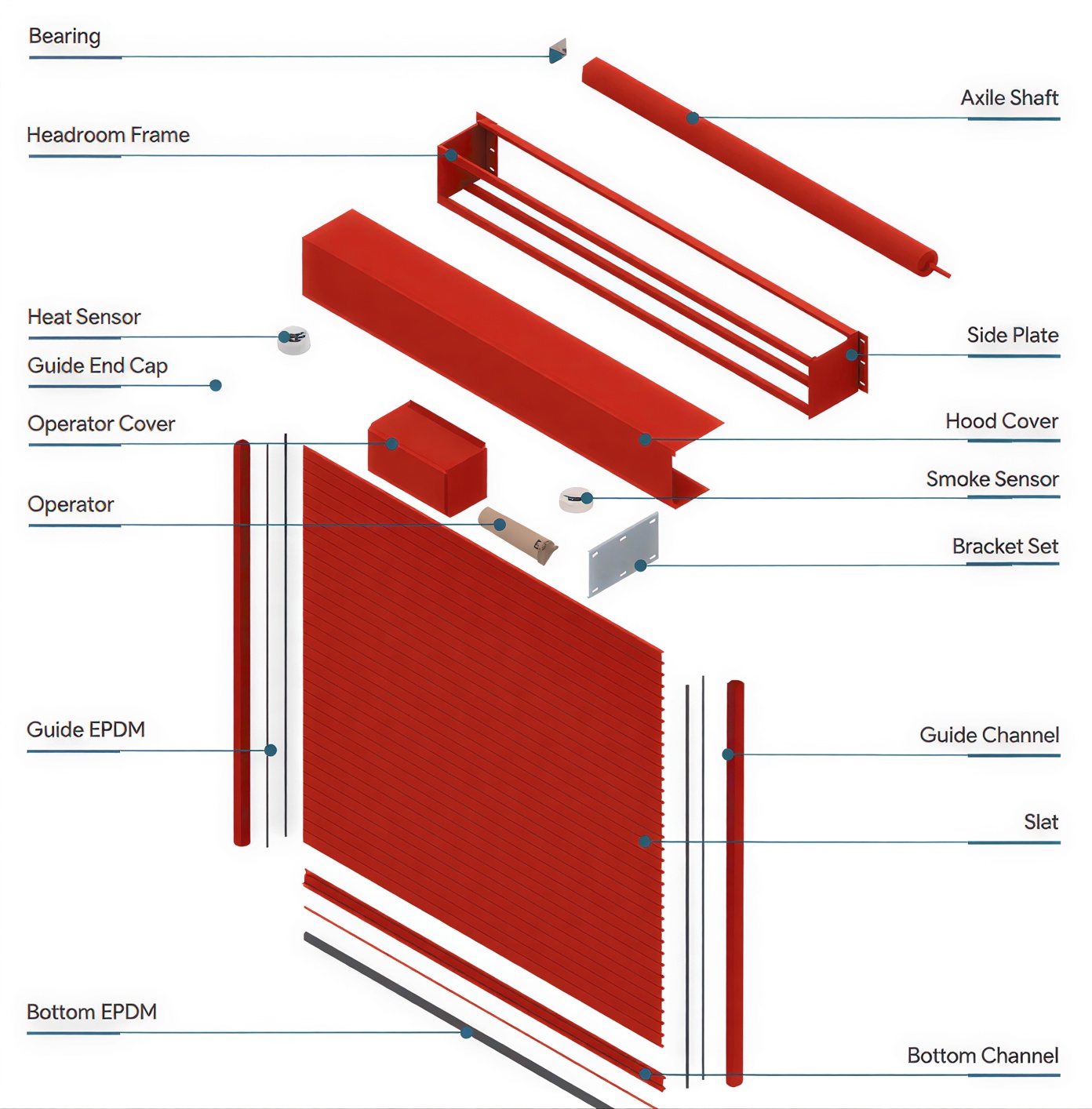

PRODUCT STRUCTURE

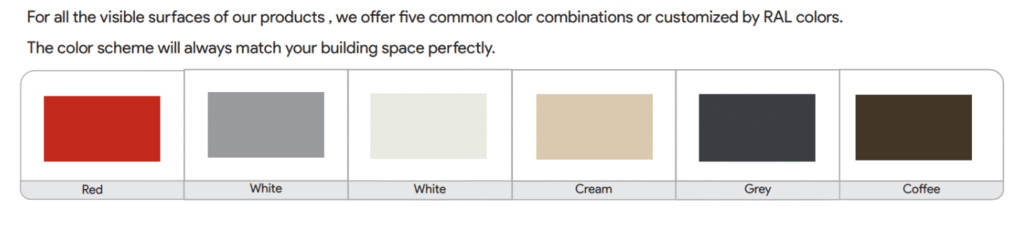

AVAILABLE COLORS
