DRIVE
ROLLING SHUTTER OPERATOR
Model No: AZRSDD260/AZRSDD350/ AZRSDD500/AZRSDD650

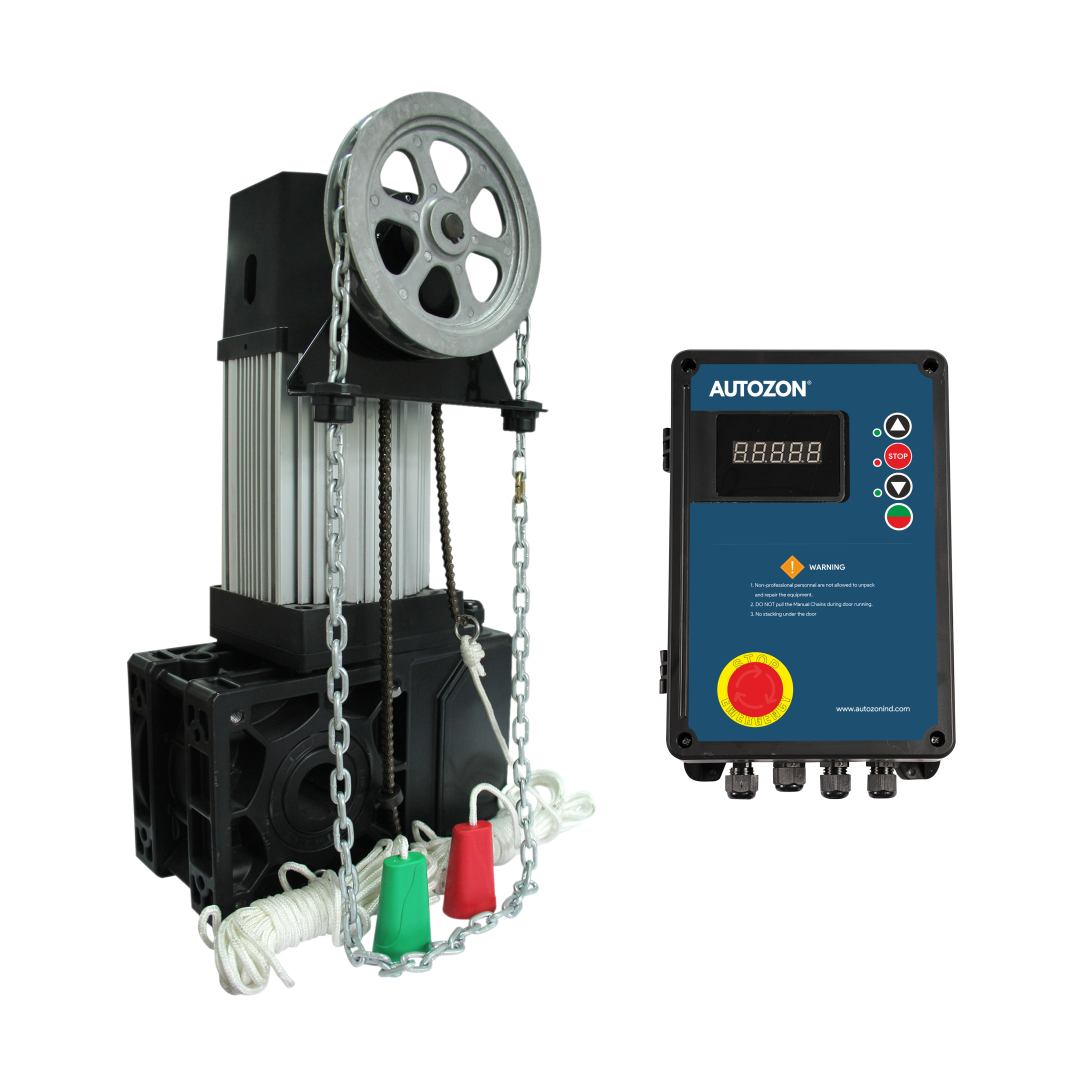

AUTOZON direct drive rolling shutter operators are built for unbalanced shutters, with the drive mounted directly on the shaft to serve as a bearing. They feature maintenance-free safety gear, plug-in connections, and operate at 380V AC with electronic limit control.
✔ AUTOZON direct drive rolling shutters operators are designed for the operation of unbalanced rolling shutter.
✔ The drive is pushed on to the cylinder shaft and can serve directly as a bearing for the door shaft. The drives can be mounted horizontally or vertically.
✔ The maintenance-free safety gear, independent of position and speed, is integrated in the gear. All electrical connections are made via detachable plug connectors.
✔ Our operators have the usual operating voltages 380 V AC with electronic limit.
| Model | Voltage | Power (W) | Speed (R/Min) | Motor Torque (N.m) | Shaft Dia (mm) | Duty Cycle | Noise | Working Temperature | Protection Class |
|---|---|---|---|---|---|---|---|---|---|
| AZRSDD260 | 380 V AC | 800 | 12 | 260 | 40 | S1 | ≤ 55 dB | -20°C ~ +45°C | IP54 |
| AZRSDD350 | 380 V AC | 1000 | 12 | 350 | 40 | S1 | ≤ 55 dB | -20°C ~ +45°C | IP54 |
| AZRSDD500 | 380 V AC | 1200 | 12 | 500 | 40 | S1 | ≤ 55 dB | -20°C ~ +45°C | IP54 |
| AZRSDD650 | 380 V AC | 1500 | 8 | 650 | 40 | S1 | ≤ 55 dB | -20°C ~ +45°C | IP54 |
