STAR

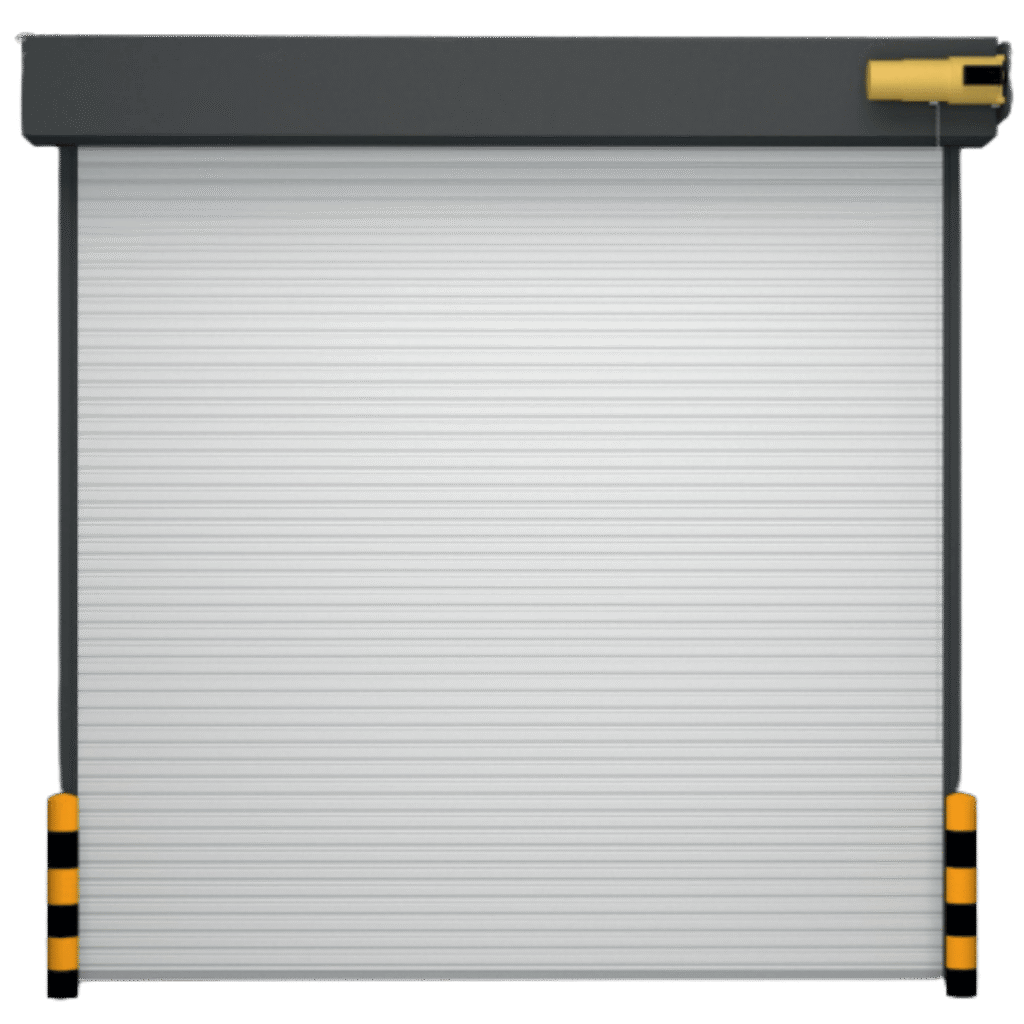

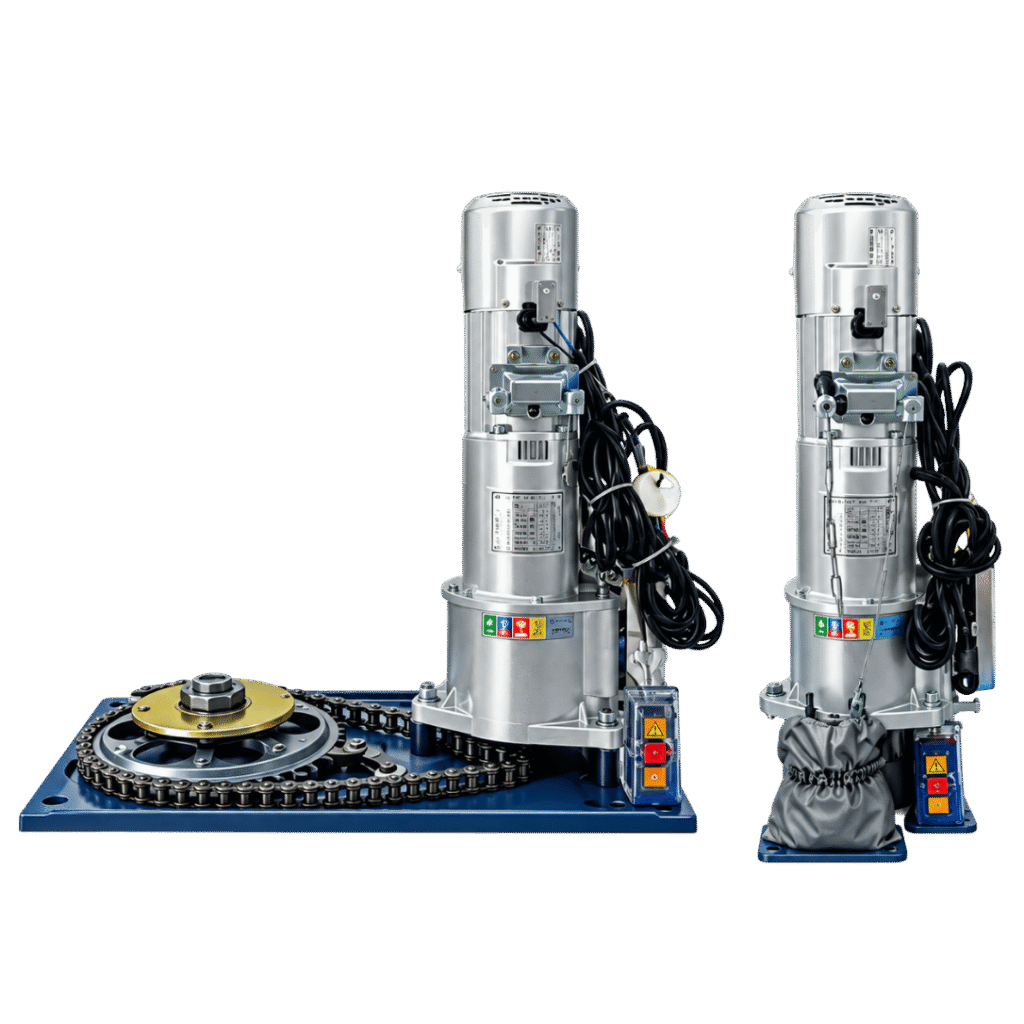

ROLLING SHUTTER INDIRECT DRIVE OPERATOR AC
Model No: –
The Servo DC motor provides precise control of position, speed, and torque with adjustable settings. Its smart feedback system ensures reliable and efficient performance for diverse applications.
✔ Light and handy, superior quality: The motor case is pressure-cast with high-strength aluminum alloy.
✔ Less noise, long cycle life: The reduction gear is made of high-quality alloy, heat-resistant with less noise.
✔ High power and fast: The motor is efficiently designed, and all components are made of superior materials to minimize time and energy consumption.
✔ Power failure: In the event of a power failure, pulling the chain by hand can lift the door, and pulling the clutch lever can lower the door.
✔ Easy operation, safety and security: The door can be controlled using a remote controller, hand control, or manual chain during a power failure. For added security, the hand control can also be locked using the remote controller.
✔ Suitable for: Garages, shops, malls, exhibition halls, museums, factories, warehouses, and more.
| MODEL | POWER SOURCE | RATED POWER (W) | RATED CURRENT (A) | LIFTING POWER (Kg.f) | OUTPUT TORQUE (Nm) | OUTPUT SPEED (RPM) | TUBE DIAMETER (mm) | CONTINUED WORKING TIME (Min) | MAX HEIGHT (M) | MOTOR & BRACKET WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| S-AZRS400 | 220 V – 240V AC | 250 | 3.3 | 400 | 225 | 6.5 | 108 | 10 | 6 | 10.6/11.5 |
| S-AZRS600 | 220 V – 240V AC | 370 | 3.9 | 600 | 412 | 6.5 | 153 | 10 | 6 | 12/12.9 |
| S-AZRS800 | 220 V – 240V AC | 450 | 4.5 | 800 | 647 | 5.4 | 153 | 12 | 9 | 14.9/18.2 |
| S-AZRS1000 1P | 220 V – 240V AC | 550 | 4.5 | 1000 | 809 | 4.8 | 208 | 12 | 9 | 15.6/27.3 |
| S-AZRS1000 3P | 380 V – 420V AC | 550 | 3.5 | 1000 | 809 | 4.8 | 208 | 12 | 9 | 15.6/27.3 |
| S-AZRS1500 1P | 220 V – 240V AC | 800 | 4.5 | 1500 | 1617 | 4.8 | 208 | 12 | 9 | 25.4/37.1 |
| S-AZRS1500 3P | 380 V – 420V AC | 800 | 3.8 | 1500 | 1617 | 4.8 | 208 | 12 | 9 | 25.4/37.1 |
| S-AZRS2000 3P | 380 V – 420V AC | 1500 | 4.5 | 2000 | 2450 | 3.6 | 208 | 12 | 12 | 27.8/52.1 |
|
TECHNICAL SPECIFICATIONS:
|
AZRSTO60
|
|---|---|
|
Input Power
|
220 V - 240 V AC
|
|
Rated Power
|
350 W
|
|
Max. Torque
|
100 Nm
|
|
Rated Frequency
|
50
|
|
Rated Current
|
0.2 A
|
|
Tube Dia
|
88 mm
|
|
Max Operator Capacity
|
130 Kg
|
|
Rotating
|
20 rpm
|
|
Protection Class
|
IP 44
|
|
Motor Weight
|
12 Kg
|
