UHF RFID LONG RANGE READER
Model No: AZUHFR115A
AZUHFR115A is a fixed compact reader, compatible with ISO 18000-6C standard, with an operating frequency of 902MHz~928MHz, exquisite appearance, and outstanding reading and writing performance. The reader can be widely used in warehousing logistics management, retail logistics center management, enterprise transportation management and automated production line management.
Low power, stable and reliable reading and writing distance.
Multi-region and multi-tag reading.
Fast data reading rate.
Multi-protocol compatible;
Tag wake-up recognition.
Waterproof appearance design.
|
Specification
|
|||
|---|---|---|---|
|
System parameters
|
AFMT+UHF module
|
||
|
Working Frequency
|
National standard (920~9251Hz), American standard (902~ 928MHz).
European standard (865~ 868MHz), Other multinational frequency standards (customized)
|
||
|
Identify cation distance
|
>15 meters
|
||
|
Group reading performance
|
>500 tags
|
||
|
Tag protocol
|
Suppo ISO18000-6C (EPC GEN2) protocol electronic tags
|
||
|
Frequency hopping mode
|
Frequency hopping spectrum (FHSS) or fixed frequency, can be set by so ware;
|
||
|
Working mode
|
Automatic mode, trigger mode, interactive mode, etc.
|
||
|
RF power
|
0-33dBm (power so ware adjustable)
|
||
|
Antenna parameters
|
8dBi circular polarization antenna (built-in)
|
||
|

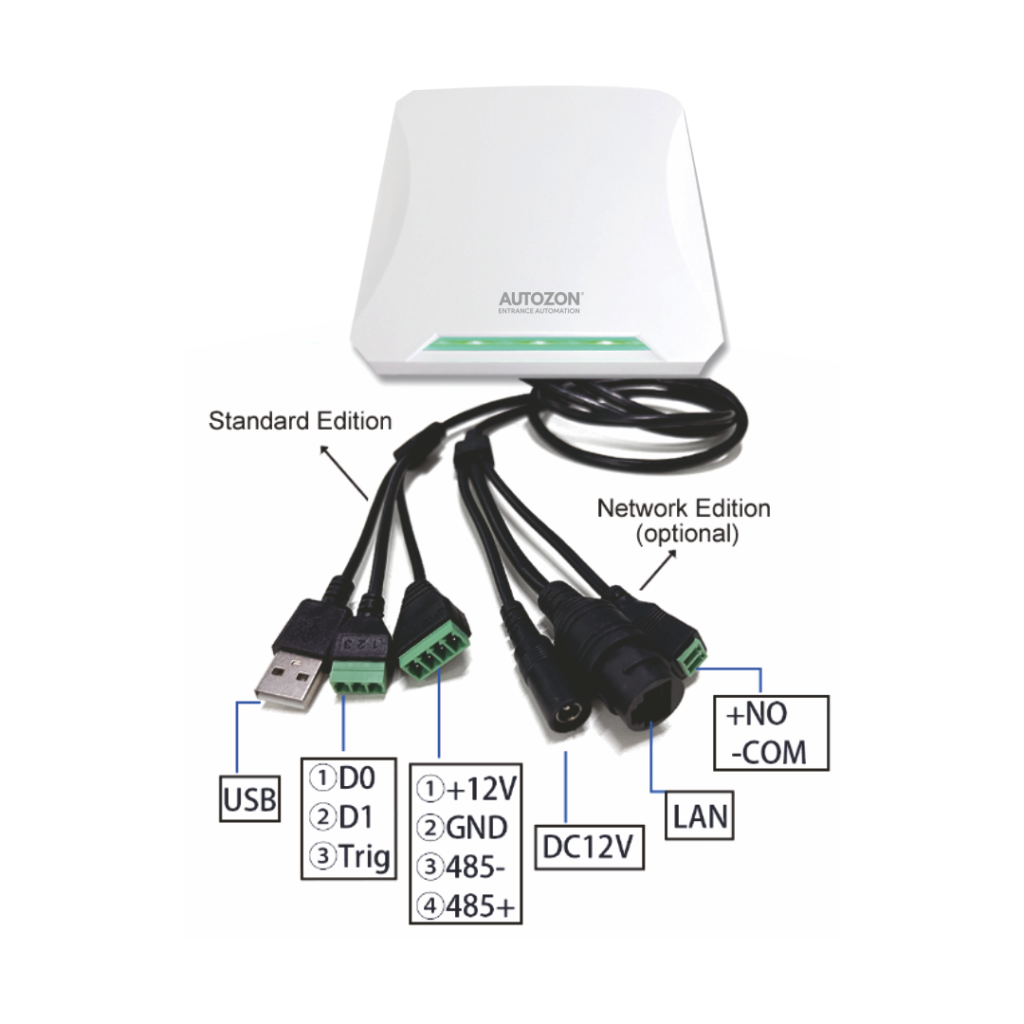

Supported interface
|
Standard RS485, Wiegand26, Wiegand34, optional Rj45, GPRS, etc.
|
||
|
Working voltage
|
+12V
|
||
|
Identification prompt
|
Buzzer or LED ash
|
||
|
Power consumption
|
<5W
|
||
|
Working temperature
|
-20 C~+70 C
|
||
|
Working humidity
|
20%~ 95% (no condensation)
|
||
|

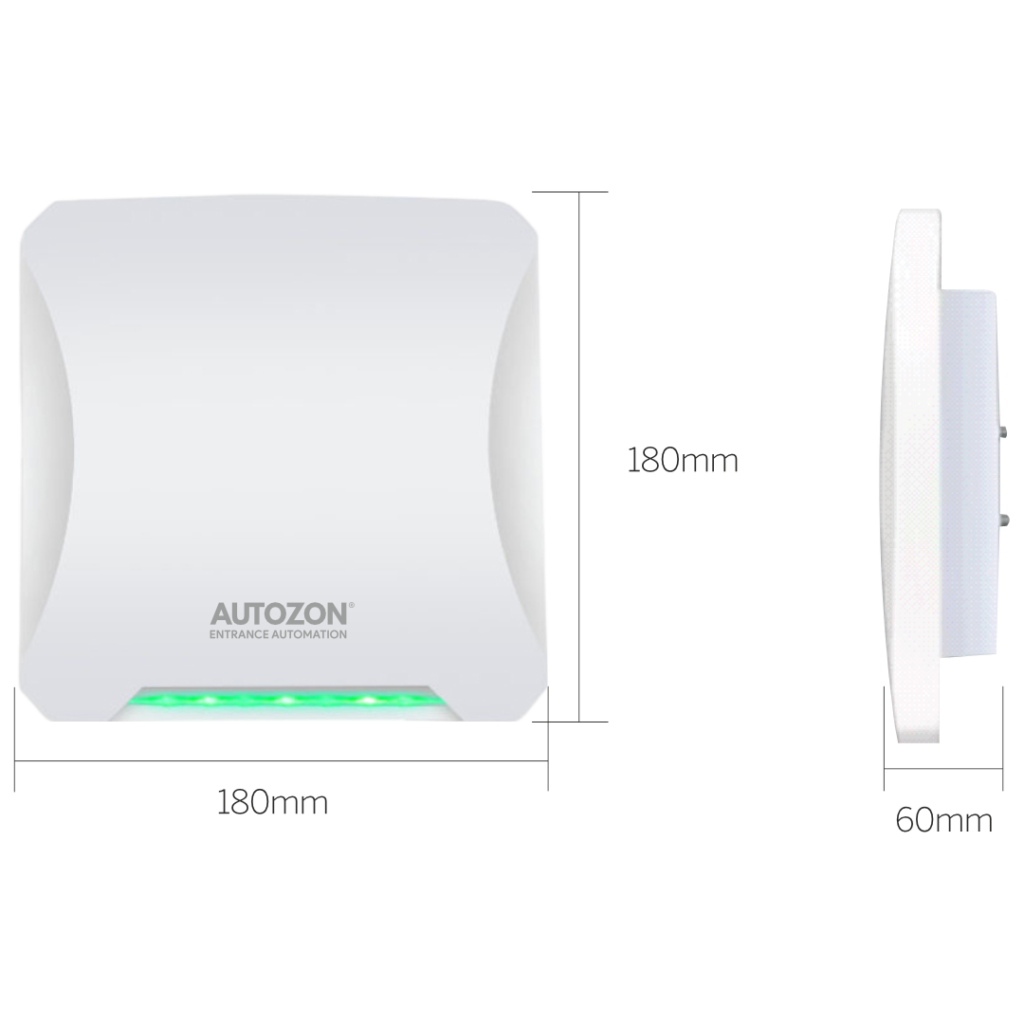

Dimensions
|
180x180x60MM/265x185x70MM
|
||
|
Net weight
|
550G
|
||
|
Gross weight
|
1100G
|
||
|
Secondary development
|
Provide dynamic link library (DLL) and demonstration so ware source code to support secondary development.
|
||
Low power, stable and reliable reading and writing distance.
Multi-region and multi-tag reading.
Fast data reading rate.
Multi-protocol compatible;
Tag wake-up recognition.
Waterproof appearance design.
|
Specification
|
|||
|---|---|---|---|
|
Model No.
|
AZUHFR115A
|
||
|
Working Frequency
|
National standard (920~9251Hz), American standard (902~ 928MHz).
European standard (865~ 868MHz), Other multinational frequency standards (customized)
|
||
|
Recognition distance
|
>6 meters
|
||
|
Group read performance
|
>50 tags
|
||
|
Tag protocol
|
Supports IS01 8000-6C (EPC GEN2) protocol electronic tags
|
||
|
Frequency hopping mode
|
Wide spectrum frequency hopping (FHSS) or fixed frequency, which can be set by so ware
|
||
|
Way of working
|
Automatic mode, trigger mode, interactive mode, etc.
|
||
|
RF power
|
0-30dBm (power software adjustable)
|
||
|
Antenna parameters
|
8dBi circular polarization antenna (built-in)
|
||
|
Supported interface
|
Standard RS232, RS485, Wieg and26, WVi egand34, optional RJ45, WIFI, GPRS, etc.
|
||
|
Operating Voltage
|
+12V
|
||
|
Identify tips
|
Beeps or LED flashes
|
||
|
Power consumption
|
<1W
|
||
|
Operating temperature
|
-20C ~ +70C (out of range needs to be customized)
|
||
|
Working humidity
|
20%~ 95% (no condensation)
|
||
|
Storage temperature
|
-40C, +125C
|
||
|
Size
|
180x180x47mm
|
||
|
Net weight
|
900G
|
||
|
Gross weight
|
1500G
|
||
