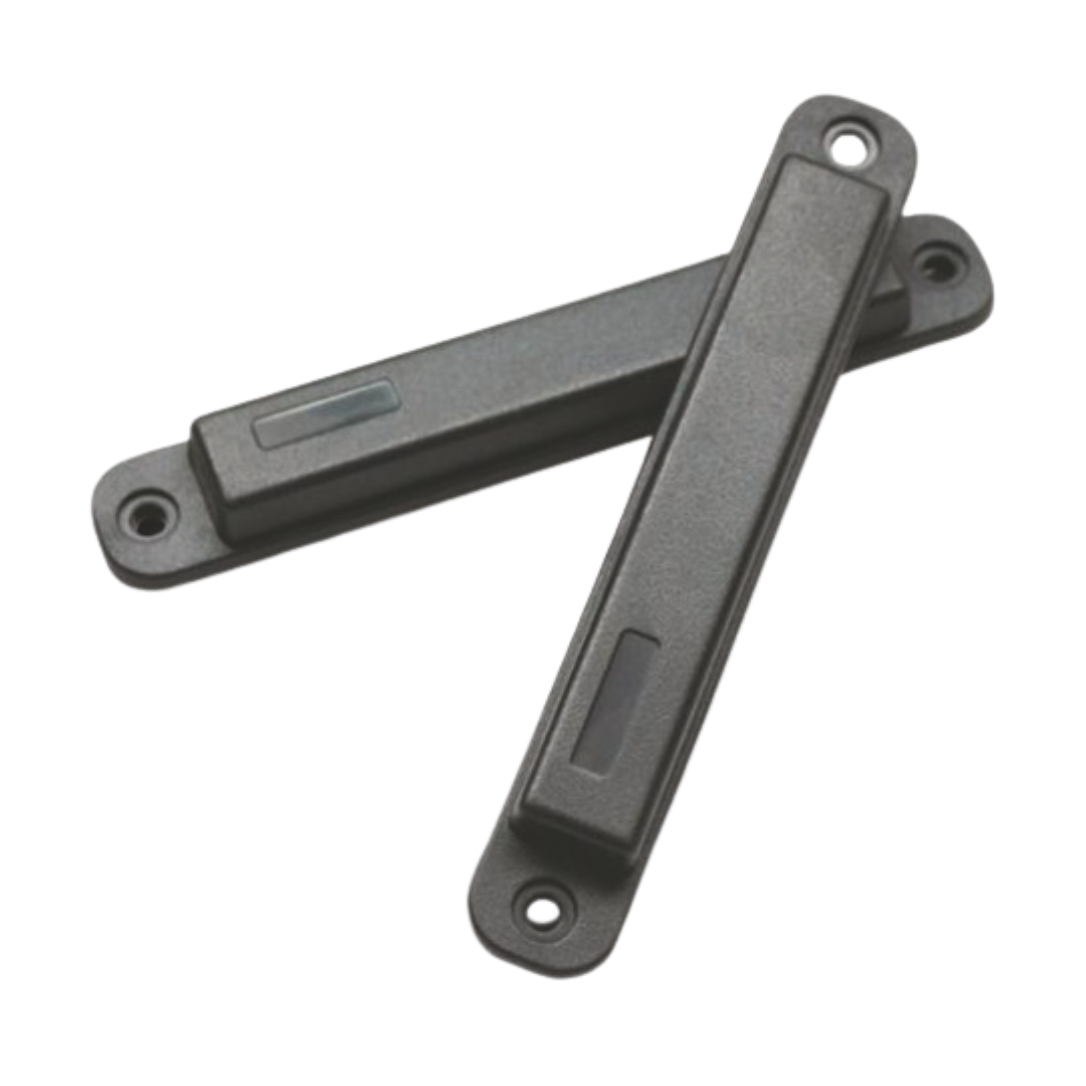

LONG RANGE UHF RFID TAG
Model No: AZ UHFT135
Built-in UHF chip:
Suitable for ISO18000-6C protocol card reader.
The service life:
Read and write 100,000 times Data retention for 50 years.

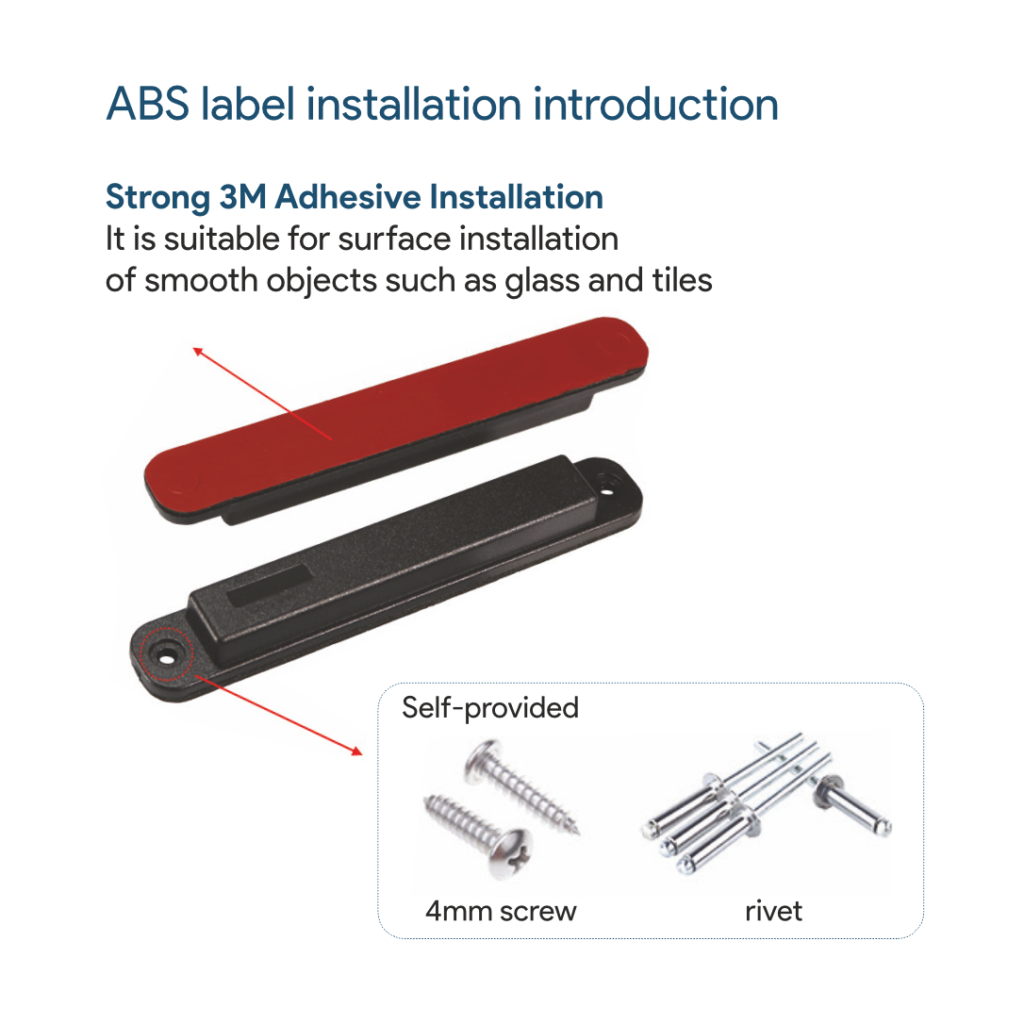

ABS label installation introduction.
Strong 3M Adhesive Installation:
It is suitable for surface installation of smooth objects such as glass and tiles.
Mounting Aperture: 4mm Screw installation: suitable for wooden frames, walls, etc. Rivet installation: suitable for appliances, iron sheets, etc.
|
Specification
|
|
|---|---|
|
Model No.
|
AZ UHFT135
|
|
Frequency
|
860~960MHz
|
|
Protocol
|
ISO/ICE18000-6C EPS Gen 2
|
|
RAM
|
Maximum expansion to 512Bits
|
|
Recognition distance
|
15m (Reader distance shall prevail)
|
|
Period of use
|
Read and write 100,000 times, data storage for 50 years
|
|
Size
|
135x22x12mm
|
