FLOW

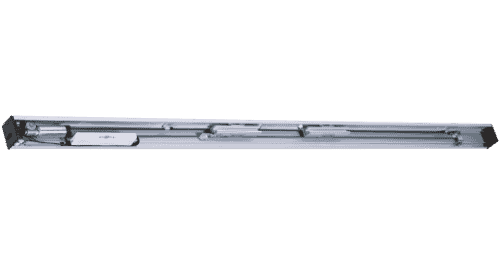

SLIDING GLASS DOOR OPERATOR
Model No: AZSLD207
The AZSLD207 transforms manual sliding doors and windows into automated systems without structural changes. Designed for single-leaf doors up to 80 kg, it fits kitchens, balconies, offices, shopfronts, French windows, and more. Compatible with sensors, remote controls, push buttons, pet switches, photocells, card readers, and locks, it ensures seamless functionality and easy installation for enhanced convenience and accessibility.
Description
✔AZSLD207 Door Operator enables converting existing manual sliding door to automatic.
✔ It will a be retro-fit in the existing structure of the manual sliding door without changes.
✔ It is compatible for mounting single leaf door weighing 80 kgs.
✔ AUTOZON retrofit system can be applied to doors of kitchen, balcony, office, shopfront, aisle & french window.
✔ System can apply with sensor, remote control, push button, pet switch, photocell, card reader, lock and so on.
|
Technical Specification
|
AZSLD207
|
|---|---|
|
Max door weight (single)
|
1 x 80 kg
|
|
Max door weight (double)
|
2 x 60 kg
|
|
Door leaf width
|
1 m
|
|
Power Supply
|
220 V - 240 V AC
|
|
Motor Power
|
24 V BL DC / 40 W
|
|
Opening speed
|
100 - 400 mm/s (adjustable)
|
|
Closing speed
|
120 - 220 mm/s (adjustable)
|
|
Holding time
|
0-20 s
|
|
Operating Temperature
|
- 20 ~ + 70° C
|
|
Track Width
|
2.2 m
|
|
Weight
|
6 Kg
|
