AUTOZON ENTRANCE AUTOMATION IS ONE OF THE LEADING MANUFACTURERS OF HIGH-QUALITY ENTRANCE AUTOMATION PRODUCTS.

SPIN

ROLLING SHUTTER TUBULAR OPERATOR

Model  No: AZRSTODC59

The tubular design fits compact spaces, ideal for modern automation. With efficient DC motor control, it ensures reliable, smooth, and durable shutter operation.



Description

✔ The tubular design allows for integration in compact spaces, ideal for modern automation solutions.

✔ Their compact form factor, combined with the high efficiency and control typical of DC motors, makes them ideal for a
variety of industrial and consumer applications.

✔ Whether you need smooth, quiet operation or robust security features, the DC tubular rolling shutter operator delivers the

✔Engineered for long-term reliability, with components designed to withstand continuous use and harsh environments.

TECHNICAL SPECIFICATIONS:

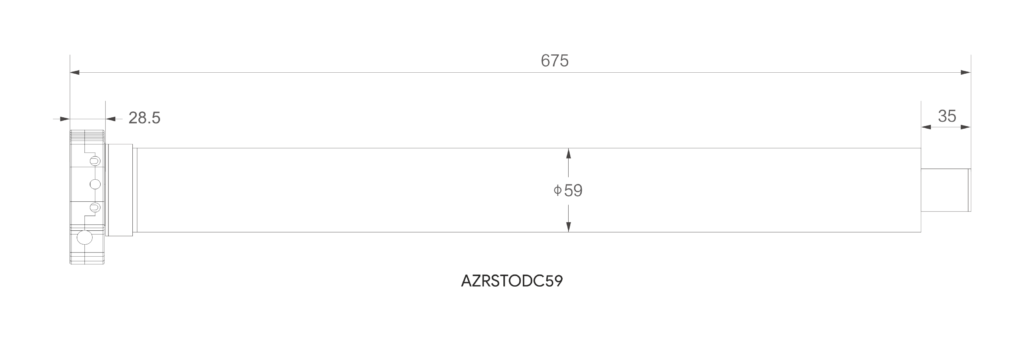

AZRSTODC59
Input Power
220 V - 240 V AC
Rated Power
465 W
Max. Torque
100 Nm
Rated Frequency
50
Running Time (min)
4
Rated Current
2.12 A
Tube Dia
88 mm
Max Operator Capacity
190 Kg
Rotating
20 rpm
Protection Class
IP 44
Motor Weight
7 Kg
crank
adaptor
idler
