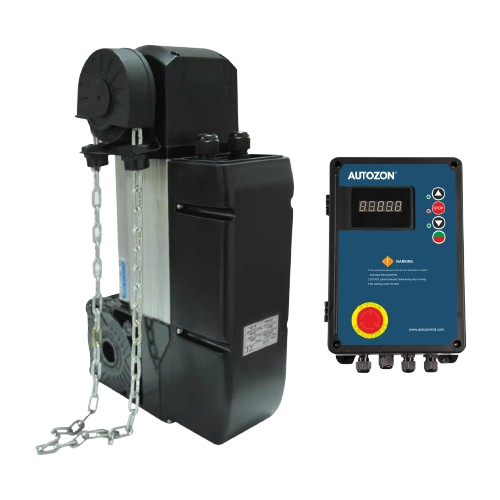

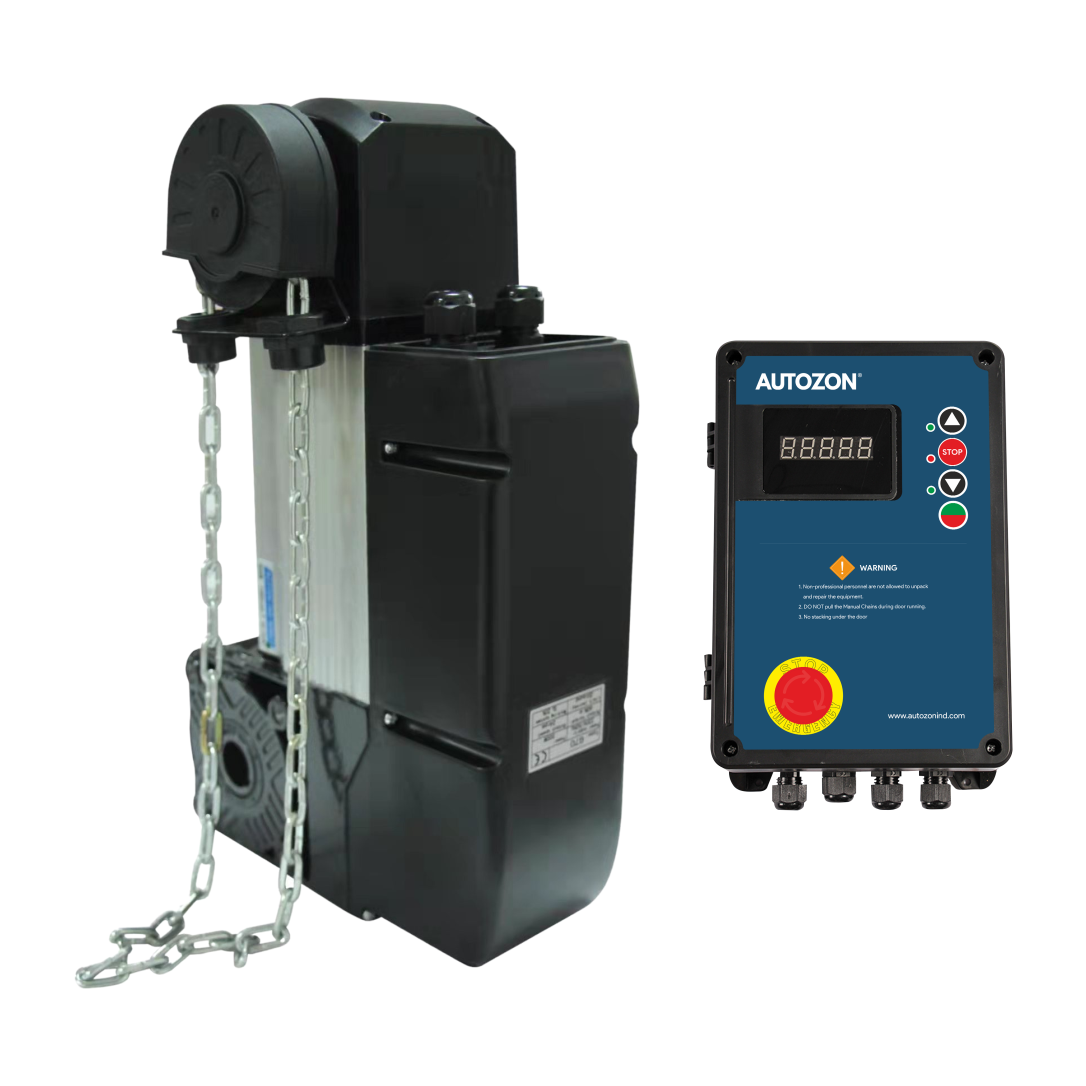

NARROW
SECTIONAL DOOR OPERATOR
Model No: AZISD40 1P/AZISD60 3P/AZISD100 3P/AZISD150 3P/AZISD40 3P
Equipped with advanced motor technology and electronic limit switches, the system offers smooth, low-noise operation with customizable settings. It supports soft start/stop, frequency conversion, and manual operation during power failure.
Description
The standard electronic limit switch system can be set using the integrated control unit by using any conventional triplex sensing device.
Powerful gearing system combined with the latest motor technology.
The basic settings in the system can be changed to t individual requirements.
The electric motor ensures long life, less-vibration and less-noise operation in all assembly positions.
Frequency conversion function, with so start and so stop function.
In the event of power failure, the door can still be opened and closed by manual chain.
|
Model
|
Voltage
|
MOTOR POWER (KW)
|
MAX DOOR AREA (Sqm)
|
TORQUE (Nm)
|
MOTOR RUNNING TIME
|
DIA OF OUTPUT SHAFT (Mm)
|
RUNNING SPEED (r/Min)
|
WORKING DUTY
|
PROTECTIVE LEVEL
|
PRODUCT WEIGHT (Kg)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
AZISD40 1P
|
220V AC
|
300
|
18
|
40
|
25 Min
|
25.4
|
24
|
S2, 20 %
|
Ip54
|
13
|
|
AZISD60 3P
|
380V AC
|
300
|
25
|
60
|
25 Min
|
25.4
|
24
|
S2, 20 %
|
Ip54
|
14
|
|
AZISD100 3P
|
380V AC
|
450
|
35
|
100
|
25 Min
|
25.4
|
24
|
S2, 20 %
|
Ip54
|
15
|
|
AZISD150 3P
|
380V AC
|
550
|
40
|
150
|
25 Min
|
25.4
|
24
|
S2, 20 %
|
Ip54
|
16
|
|
AZISD40 3P
|
380V AC
|
250
|
20
|
40
|
25 Min
|
25.4
|
24
|
S2, 20 %
|
Ip54
|
13
|
