PROTO

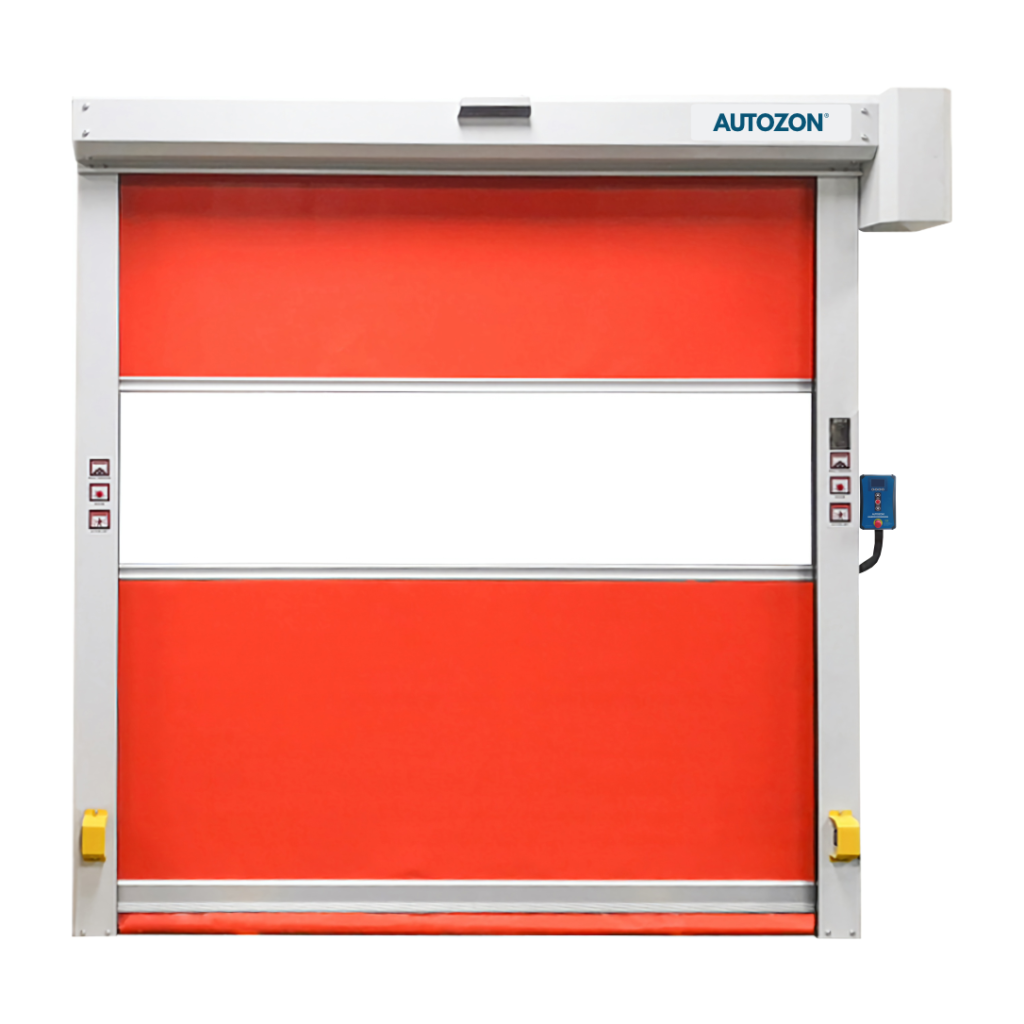

HIGH SPEED DOOR OPERATOR

Model  No: AZHSDSO131A/ AZHSDSO132A/ AZHSDSM133A

The compact servo operator ensures precise control for high-speed, high-frequency industrial use with up to 2000 daily operations. It features integrated wiring, customizable modes, memory functions, and manual emergency operation.

Description

✔ Compact design and precise control stable for very intensive industrial applications.

✔ Servo operator utilizes integrated design concept in order to simplify internal wiring and to prevent malfunction caused by wiring and terminal connections.

✔ Door max operating speed is 1 m / 0.8 s, daily operation time: 2000 times.

✔ Each system with operating control order and mode can be custom made to suit each door, to ensure max operating condition.
The system has a unique order and more memory mode and one key recovery mode.

✔ The system applicable for continuous high usage and it can be applied to high frequency high speed passage ways.

✔ Manual operation (emergency hand crank).

Model
Voltage
POWER (KW)
SPEED(rpm)
TORQUE (Nm)
OUTPUT SPEED(rpm)
OUTPUT TORQUE(rpm)
SHAFT DIA METER(MM)
MAX CYCLE PER HOUR
MAX DOOR AREA (m2)
PRODUCT CLASS
AZHSDSO131A
220 V - 240 V AC
0.75
2500
2.87
166
25
Ø 25
85
12
Ip54
AZHSDSO132A
220 V - 240 V AC
1.5
2000
5.73
133
52
Ø 25
85
30
Ip54
AZHSDSM133A
220 V - 240 V AC
2.2
2000
6.5
120
92
Ø 25
85
45
Ip54
