BLINDS OPERATOR
Model No: AZBO25R/AZBO35R6/ AZBO35R13

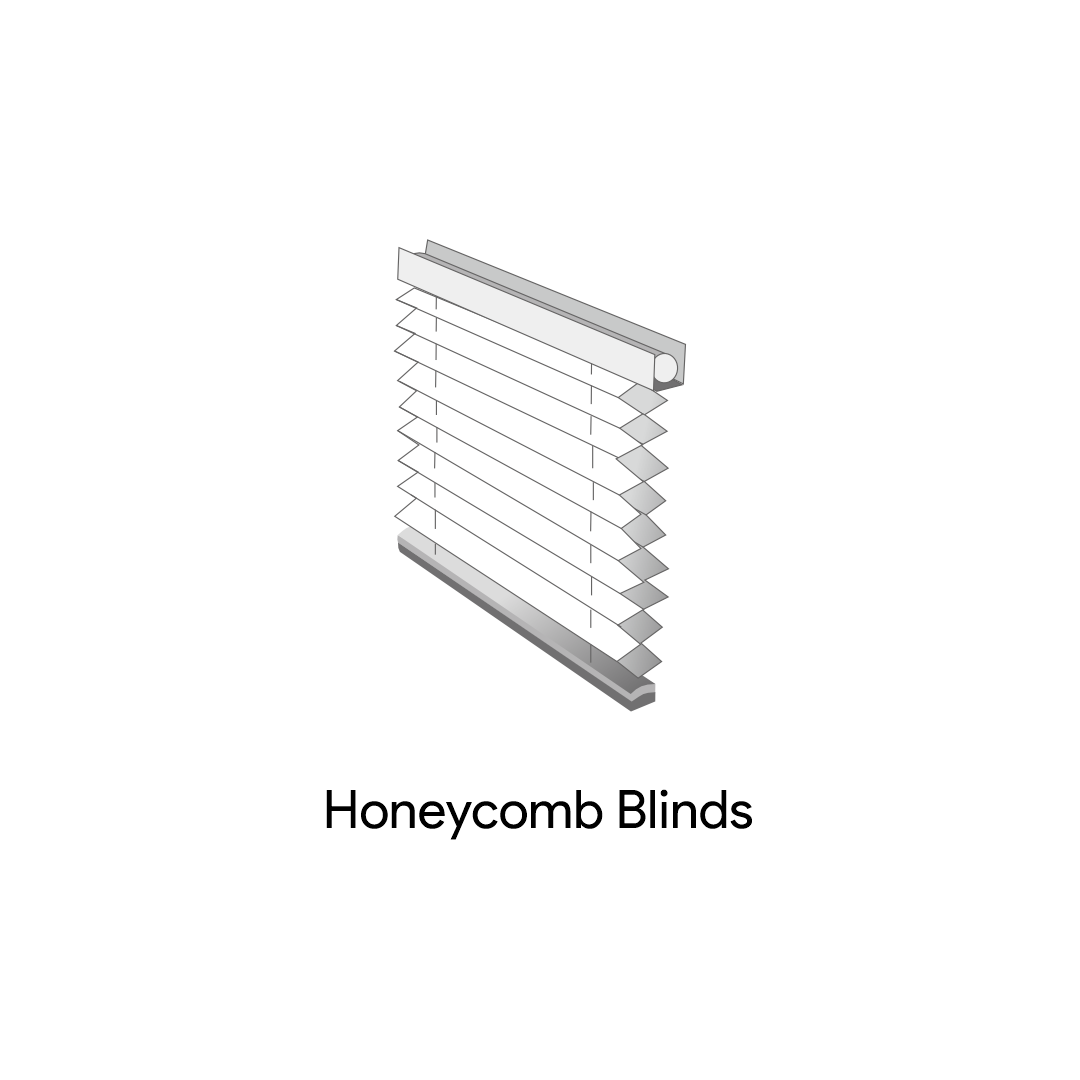

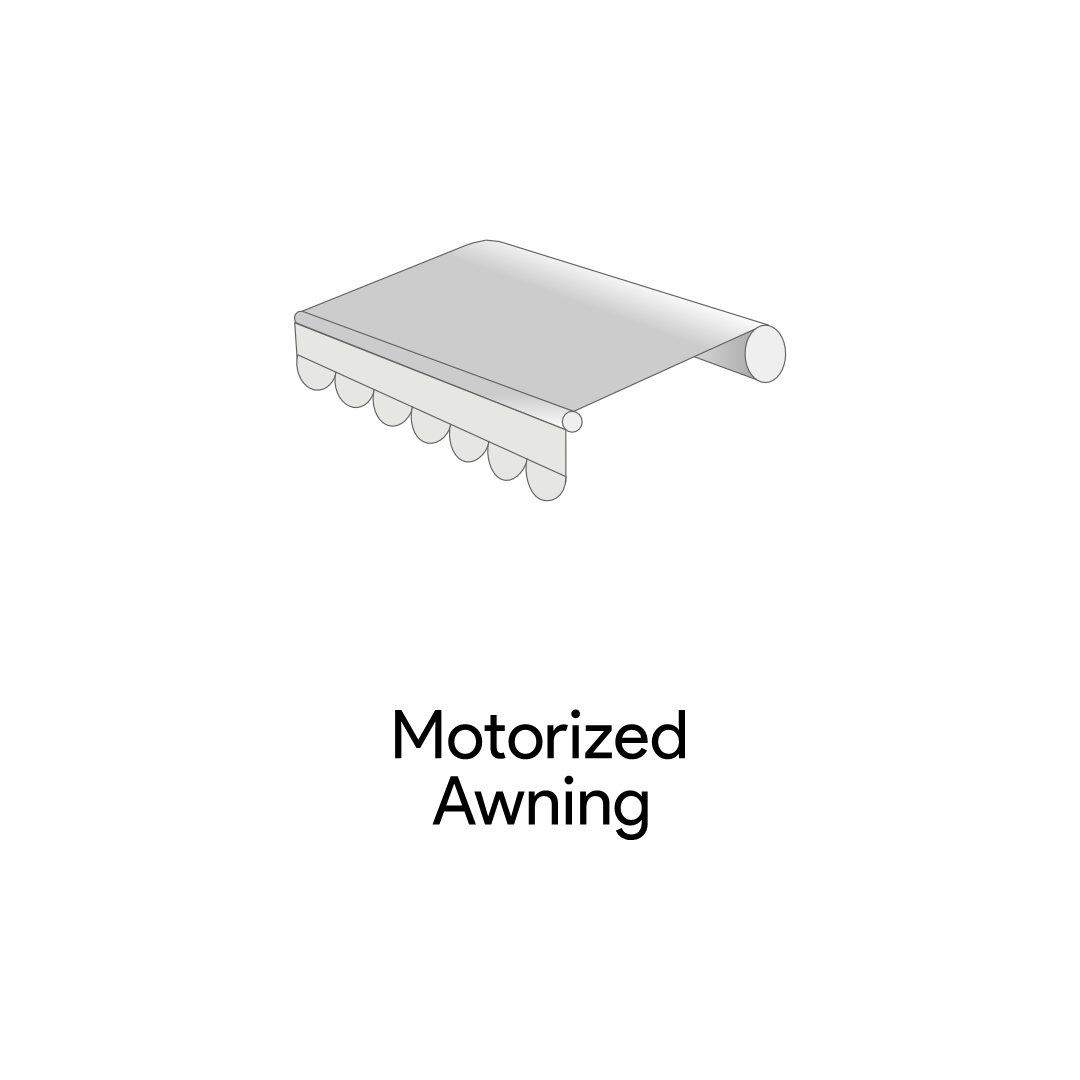

The Tubular Operator is ideal for roller, honeycomb, venetian, and awning blinds. It features a built-in receiver, accurate limit switches, flexible control modes, overload protection, and quiet operation.
Description

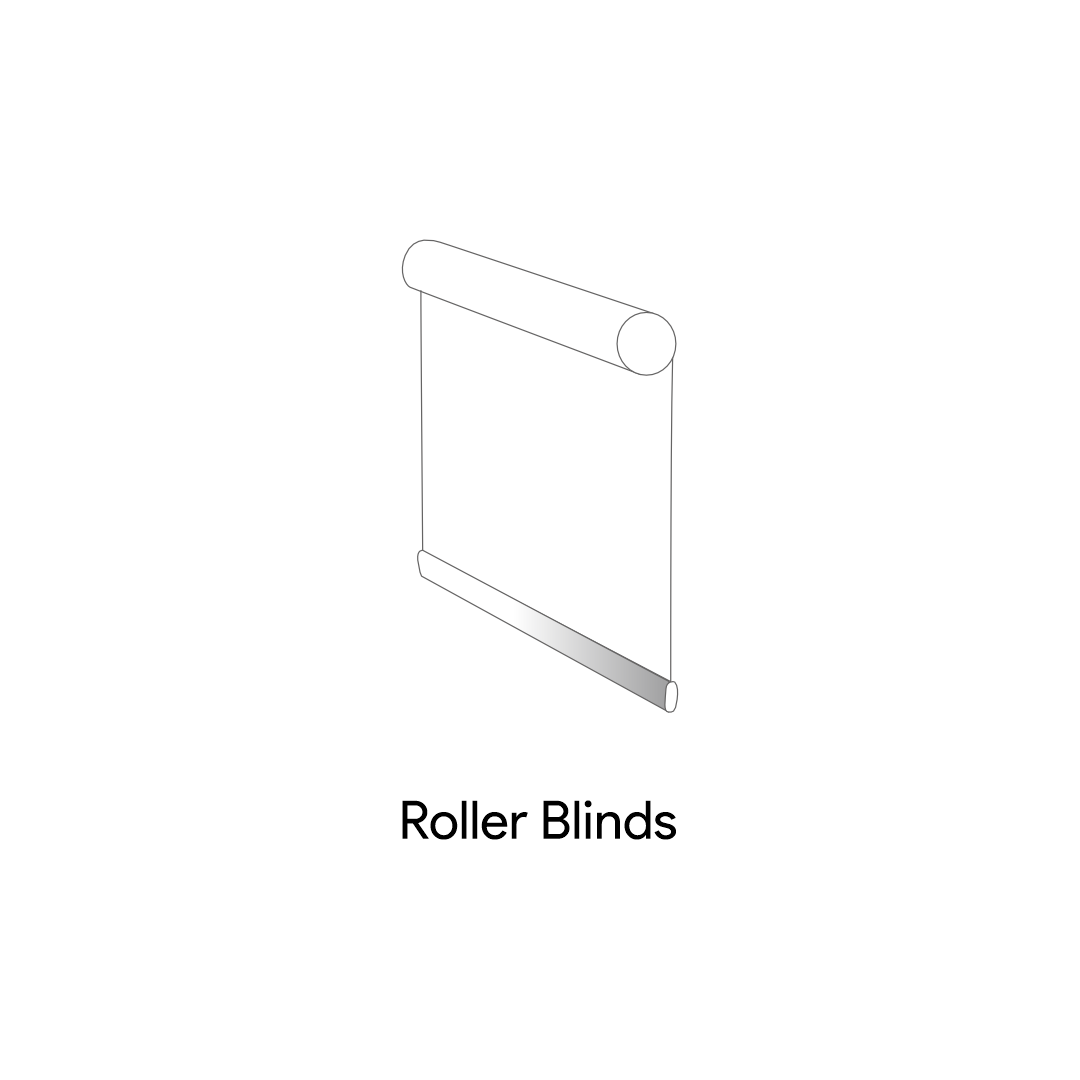

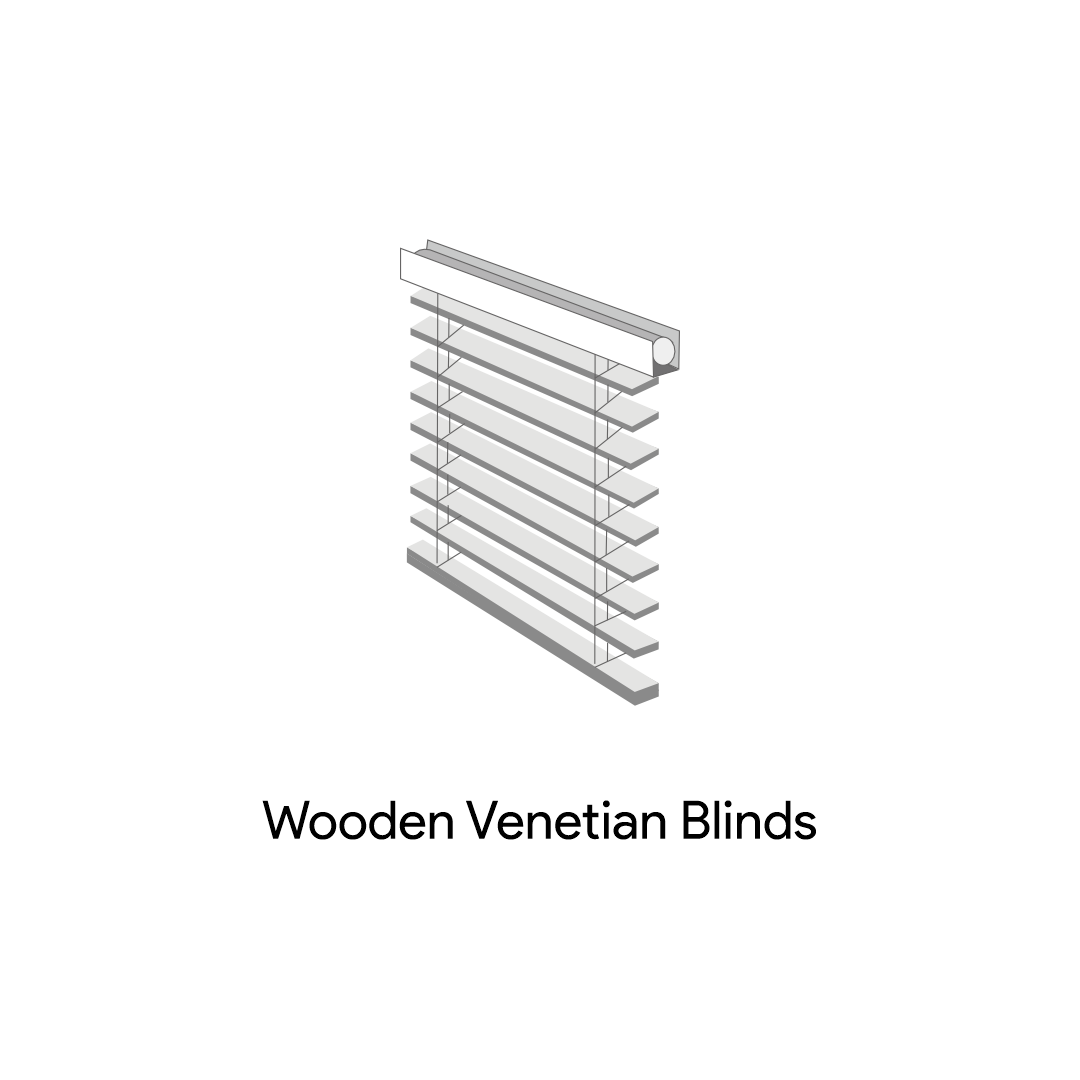

Tubular Operator is mainly used for roller, honeycomb, venetian & awnings blinds etc..
Built in receiver, can realize variety of control functions.
Mechanical & electronic limit switch, with accurate limit position.
Flexible control mode: single control, group control and packet control can be achieved.
Over load protection function.
Easy installation and smooth running, dB level below 38dB.
|
Technical Specification
|
AZBO25R
|
AZBO35R6
|
AZBO35R13
|
|---|---|---|---|
|
Rated Torque
|
1.1 Nm
|
6 Nm
|
13 Nm
|
|
Rated Speed
|
30 RPM
|
28 RPM
|
14 RPM
|
|
Power Supply Voltage
|
220 V - 240 V AC
|
220 V - 240 V AC
|
220 V - 240 V AC
|
|
Motor Power
|
10 W
|
115 W
|
126 W
|
|
Rated Current
|
1 A
|
0.68 A
|
0.75 A
|
|
Motor Diameter
|
25 mm
|
35 mm
|
35 mm
|
|
Limit Turns
|
Electronic Limit
|
42 tum
|
42 tum
|
|
Running Time
|
≤ 4 Min
|
≤ 4 Min
|
≤ 4 Min
|
|
Max Load
|
5 Kg
|
18 Kg
|
35 Kg
|
|
Max Width
|
2.5 Mtr
|
3 Mtr
|
6 Mtr
|
|
Max Height
|
2.5 Mtr
|
3 Mtr
|
6 Mtr
|
|
Protection level
|
Ip44
|
Ip44
|
Ip44
|
|
Motor Weight
|
2 Kg
|
2.2 Kg
|
2.5 Kg
|
