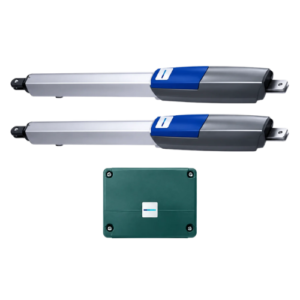

ARM
Swing Gate Operator
Model No: AZSW112B
The AZSW series—featuring models AZSW112B—is designed to bring reliable automation to sliding gates in residential, commercial, and industrial settings. With a high-torque motor that ensures smooth and quiet operation, these operators provide secure, effortless access control.
Description

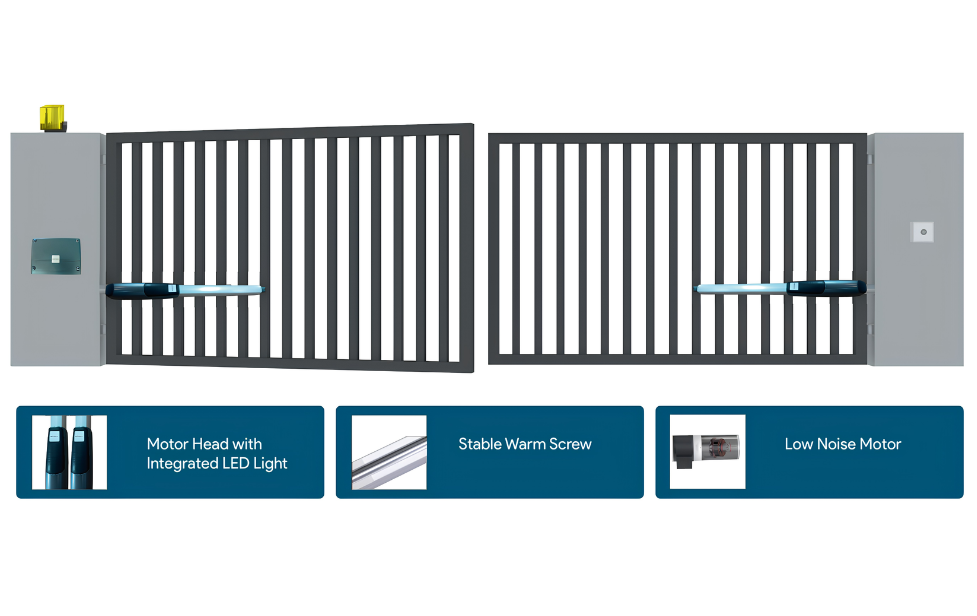

The swing gate operator is applicable for all gates with the weight of the single-leaf gate up to 400 kg and the width of each swing gate should be 4m.
High-strength, wear-resistant screw drive with planetary-geared DC motor for smooth and powe ul operation.
Adjustable So-Sta and So-Stop for smoother movement and reduced strain on components.
Advanced safety system with infrared photocell.
Self-locking motor allows manual engage/disengage at any position during power failure.
| TECHNICAL SPECIFICATIONS: | AZSW112B |
|---|---|
| Power supply | 220 V – 240 V AC |
| Motor Power | 200 W * 2 nos |
| Motor Voltage | 24 V DC |
| Maximum weight of gate | 400 + 400 Kg |
| Maximum leaf length | 4 M + 4 M |
| Maximum piston stroke | 400mm |
| Maximum Opening Angle | 120° |
| Opening time | 12mm/sec |
| Transmitter Distance | ≤ 30 m |
| Max Recording of Transmitter | 30 nos |
| Working Cycle | S2 |
| Working temperature | -20°C ~ +50°C |
| Protection Class | IP 54 |
| Product Weight (Single Arm/Double Arm) | 13.5 Kg/20.8 Kg |
| Speed | 11 mm / s |
