Sliding Gate Operator
Model No: AZSW106A
The AZSW series—featuring models AZSW106A—is designed to bring reliable automation to sliding gates in residential, commercial, and industrial settings. With a high-torque motor that ensures smooth and quiet operation, these operators provide secure, effortless access control.
Description

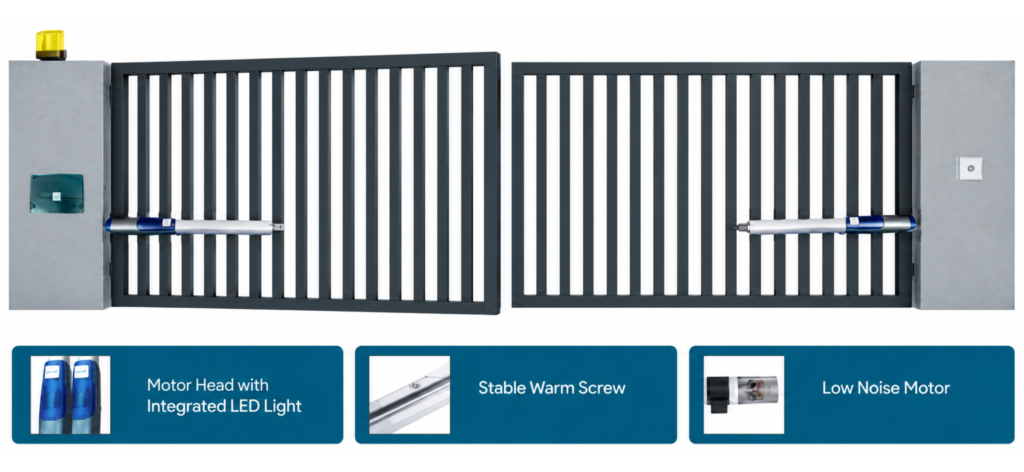

The swing gate operator is applicable for all gates with the weight of the single-leaf gate up to 300 kg and the width of each swing gate should be 2.5m.
High-strength, wear-resistant screw drive with planetary-geared DC motor for smooth and powerful operation.
Adjustable Soft-Start and Soft-Stop for smoother movement and reduced strain on components.
Advanced safety system with infrared photocell.
Self-locking motor allows manual engage/disengage at any position during power failure.
| TECHNICAL SPECIFICATIONS: | AZSW106A |
|---|---|
| Power supply | 220 V – 240 V AC |
| Motor power | 100 W * 2 nos |
| Motor Voltage | 24 V DC |
| Maximum weight of gate | 300 + 300 Kg |
| Maximum leaf length | 2.5 M + 2.5 M |
| Maximum piston stroke | 320mm |
| Maximum Opening Angle | 110° |
| Opening time | 20mm/sec |
| Transmitter Distance | ≤30 m |
| Max Recording of Transmitter | 30 nos |
| Working Cycle | S2 |
| Working temperature | -20°C ~ +50°C |
| Protection Class | IP 54 |
| Product Weight (Single Arm/Double Arm) | 11.7 Kg/19.3 Kg |
| Speed | 22 mm / s |
