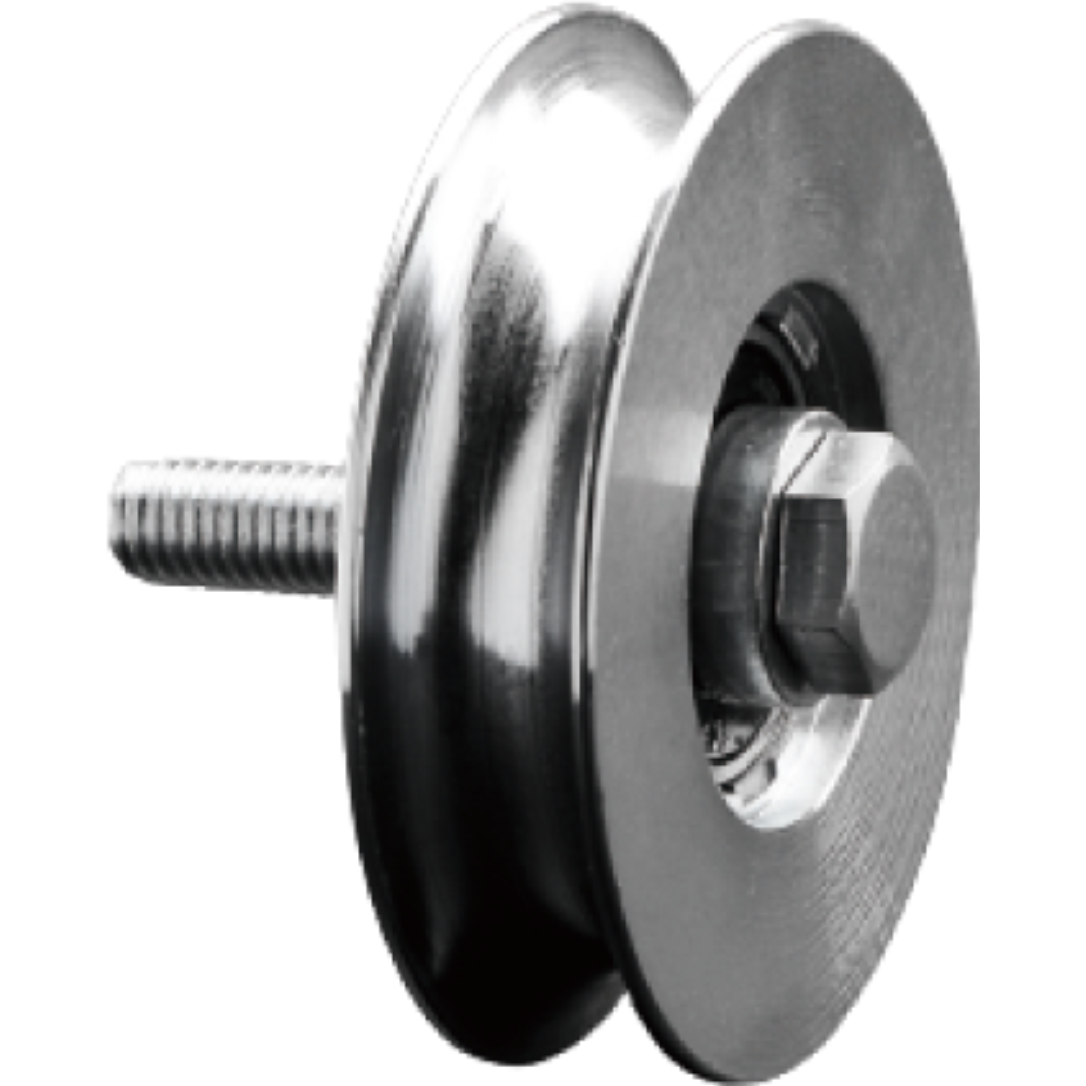

Sliding Gate Wheel With Bolt(Double Bearing, U Groove)
SLIDING GATE HARDWARE
Model No: AZ N2U80 R20/ AZ N2U100 R20/AZ N2U120 R20/AZ N2U160 R20/AZ N2U180 R20
|

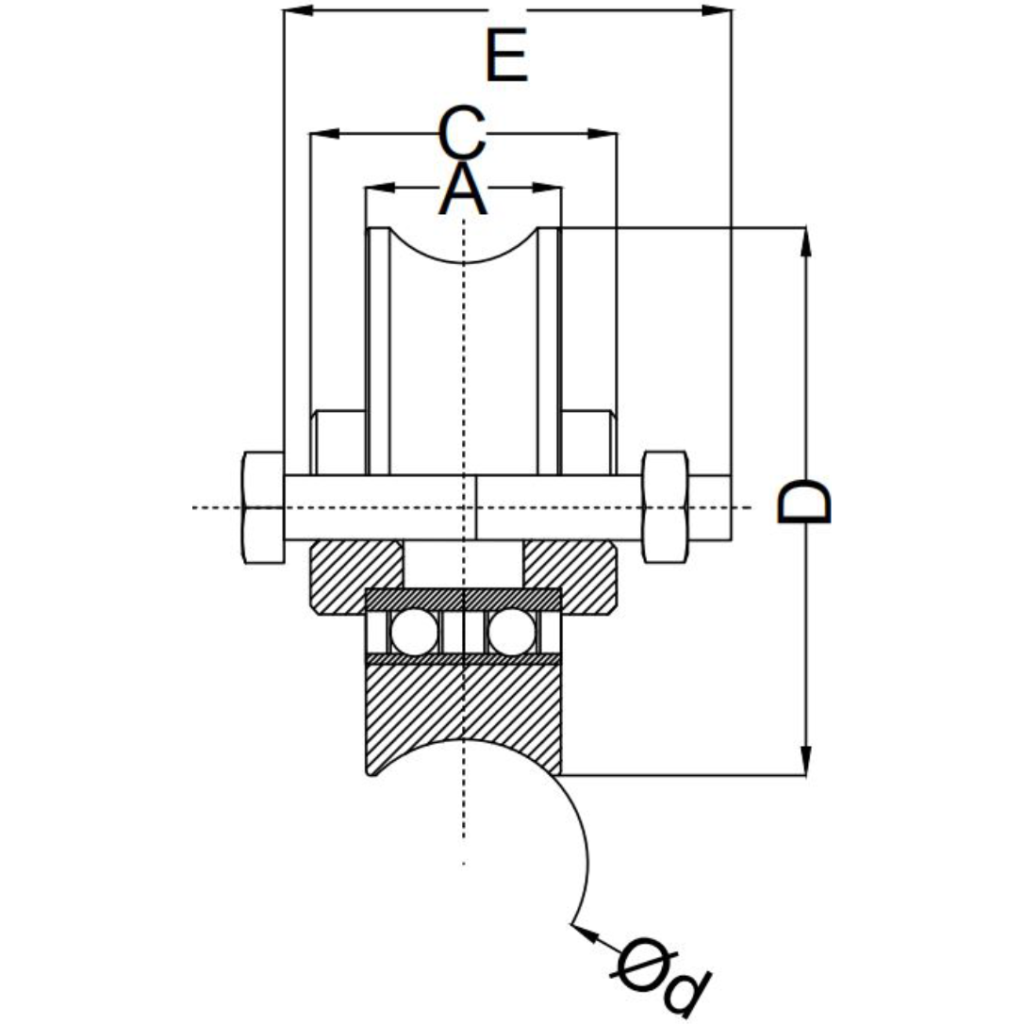

Product Code
|
D
|
A
|
C
|
E
|
d
|
Product Weight
|
Capacity
|
|---|---|---|---|---|---|---|---|
|
AZ N2U80 R20
|
78
|
25
|
31
|
M10x55
|
20.5
|
645 g
|
200 kg
|
|
AZ N2U100 R20
|
98
|
25
|
30
|
M14x70
|
20.5
|
1168 g
|
300 kg
|
|
AZ N2U120 R20
|
118
|
30
|
42
|
M16x75
|
20.5
|
2122 g
|
400 kg
|
|
AZ N2U160 R20
|
158
|
30
|
42
|
M16x75
|
20.5
|
4018g
|
500 kg
|
|
AZ N2U180 R20
|
178
|
30
|
42
|
M16x75
|
20.5
|
5236 g
|
600 kg
|
