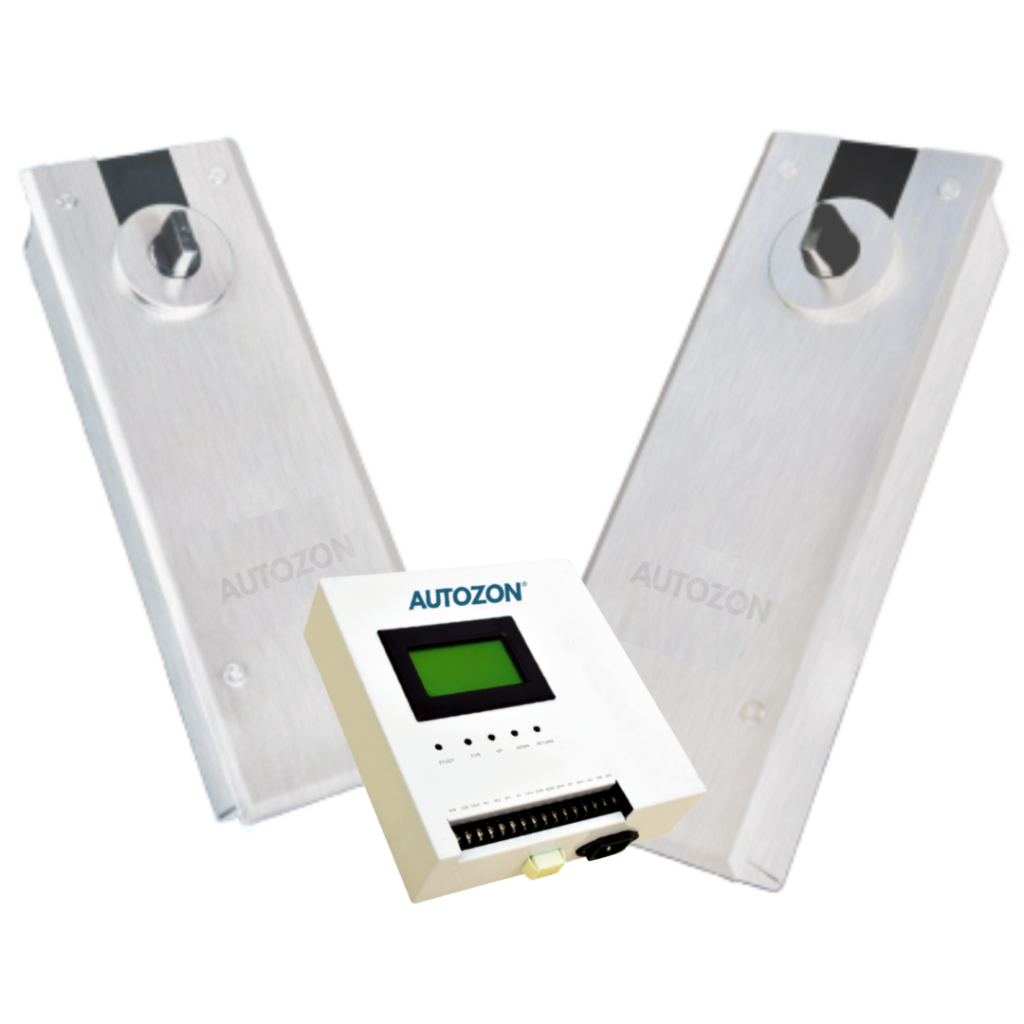

EDGE
SWING DOOR OPERATOR
Model No: AZSWD203UG
This advanced controller features a display debugging interface for effortless operation, along with key functions like an electric lock and backup battery. The unit is housed in a BMC injection-molded case, with sealed DC motors that are waterproof, fireproof, and corrosion-resistant.
Description
The controller has display debugging interface, which aids in easy operation and is equipped with function pas such as electric lock & backup battery.
The case of the machine is injection moulded by BMC. All DC motors are sealed to be super waterproof, reproof and corrosion resistant.
The Max. load is 150KG, the unit can be opened at 90 degrees (automatically sense the passing direction of pedestrians, and opening the door with
the pedestrian walking direction).
It is resistant to both low and high temperature and can work between the ranges of -20~ + 50°C environment.
Small size, waterproof, heavy load, easy construction, etc., can be used both indoor and outdoor.
|
Technical Specification
|
AZSWD203UG
|
|---|---|
|
Power supply
|
220 V - 240 V AC
|
|
Motor power
|
24 V BL DC / 55 W
|
|
Max. door weight
|
150 kg
|
|
Max. door width
|
1200 mm
|
|
Max. torque
|
165 Nm
|
|
Running noise
|
<60 dB
|
|
Electric lock output
|
DC 12 V NO / NC
|
|
Opening /Closing time
|
6-12 s
|
|
Opening range
|
86°- 95°
|
|
Working temperature
|
-20 ~ +50°C
|
|
Protection level
|
IP68
|
|
Unit weight
|
5.5 Kg
|
