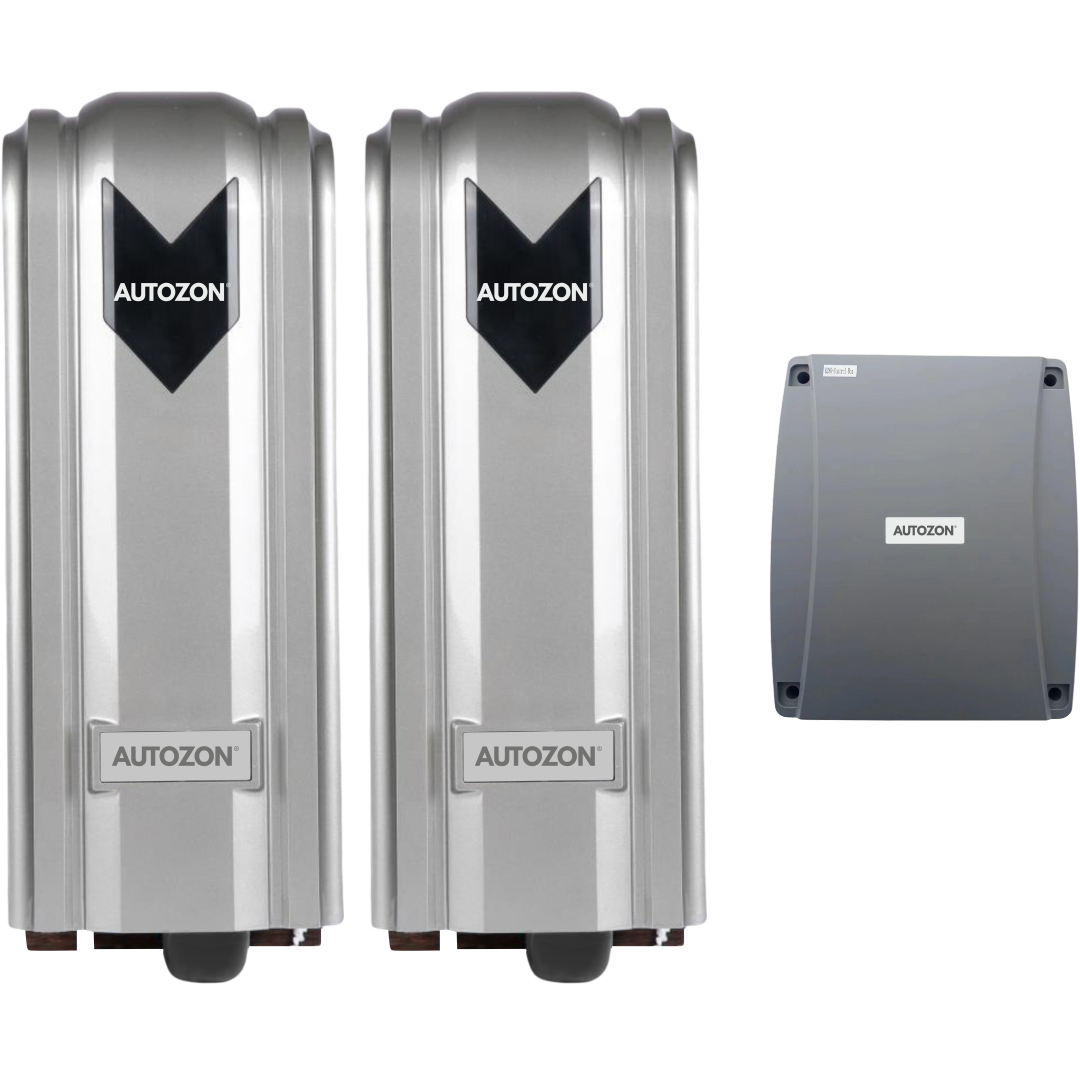

ECO
SWING GATE OPERATOR
Model No: AZSW108A / AZSW108B
An efficient and versatile solution for gates, offering easy operation with the motor positioned away from the hinge. Features include a sliding groove for up to 80mm road surface tolerance, unlimited opening angle (over 180°), automatic locking, and a microprocessor control unit with customizable settings. Supports safety devices and manual unlocking. Designed for fast installation and easy electrical connection.
Description
Easier to drive the gate : The motor is mounted on the far end from the hinge point
Special sliding groove : This enables to increase the tolerance capacity against the unevenness of road suarfce up to 80 mm
Unlimited opening angle : As far as the opener is concerned, the opening angle can be greater than 180 degree.
Automatic locking : This combines both closing and locking actions
Microprocessor control unit with a wide variety of setting options, such as pedestrian leaf function, automatic closing of the gate, etc
Operator can be manually unlocked in any position
Connections for safety devices, such as warning light and photocell as well as for an external device (DC 24 V),
potential-free relay contact
Fast installation and also provided with easy electrical connection
|
Technical Specification
|
AZSW108A
|
AZSW108B
|
|---|---|---|
|
Power supply
|
220 V - 240 V AC
|
220 V - 240 V AC
|
|
Motor power
|
40 W * 2 nos
|
65 W * 2 nos
|
|
Motor Voltage
|
24 V DC
|
24 V DC
|
|
Maximum weight of gate
|
400+ 400 Kg
|
800 + 800 Kg
|
|
Maximum width of gate
|
3+3 m
|
3 +3 m
|
|
Motor Force
|
600 N
|
600 N
|
|
RPM
|
52 RPM
|
52 RPM
|
|
Gate Moving Speed
|
15 m / min
|
15 m / min
|
|
Remote control distance
|
≤ 50 m
|
≤ 50 m
|
|
Max Recording of Transmitter
|
100 nos
|
100 nos
|
|
Working temperature
|
-35°C ~ + 65°C
|
-35°C ~ + 65°C
|
|
Protection Class
|
IP 44
|
IP 44
|
|
Product Weight
|
19.5 Kg
|
20.5 Kg
|
Face Recognition
Finger Print
RFID
QR CODE
PIN
IOT
GSM
Safety Devices
Battery Backup
