ICON
SWING GATE OPERATOR
Model No: AZSW106 2.5 / AZSW106 3
Designed for gates up to 300 kg and 2.5m/3m width per leaf. Features a worm gear drive, microprocessor control with advanced settings (e.g., pedestrian leaf and auto-close), manual unlocking in any position, and safety device connections. Offers fast installation with simple electrical setup.
Description

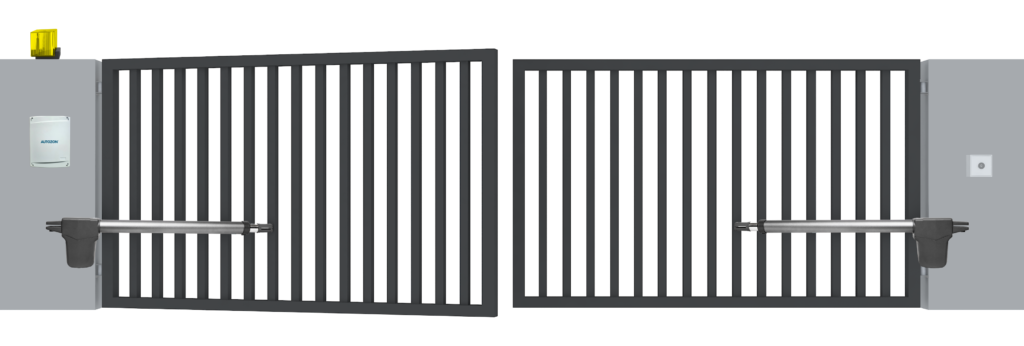

The swing gate operator is applicable for all gates with the weight of the single-leaf gate up to 300 kg and the width of each swing gate should be 2.5m/3m
The drive mode adopts the worm and worm gear to combine the screw rod transmission
Microprocessor control unit with a wide variety of setting options, such as pedestrian leaf function, automatic closing of the gate, etc.
Operator can be manually unlocked in any position (e.g. in the event of a power failure)
Connections for safety devices, such as warning light and photocell as well as for an external device, potential-free relay contact
Fast installation and also provided with easy electrical connection
|

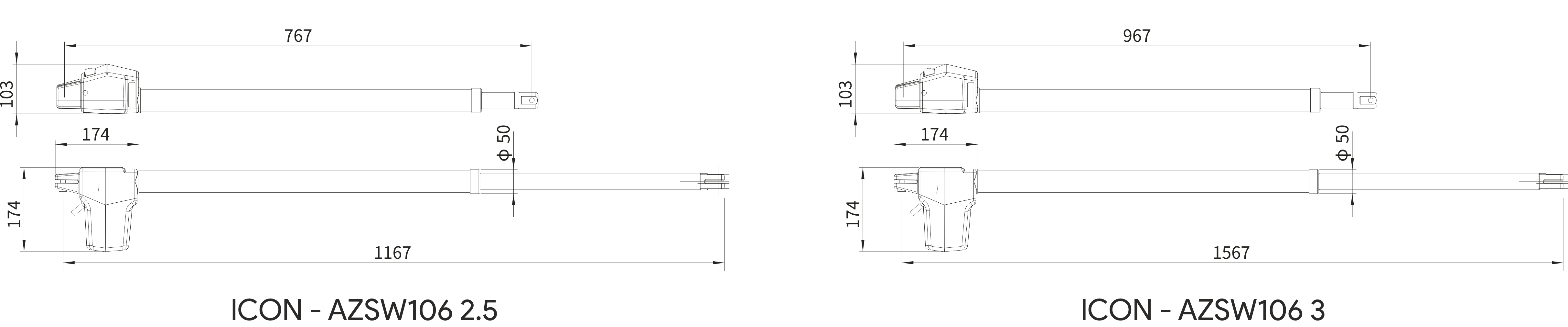

Technical Specification
|
AZSW106 2.5
|
AZSW106 3
|
|---|---|---|
|
Power supply
|
220 V - 240 V AC
|
220 V - 240 V AC
|
|
Motor power
|
160 W * 2 nos
|
160 W * 2 nos
|
|
Motor Voltage
|
24 V DC
|
24 V DC
|
|
Maximum weight of gate
|
250 + 250 Kg
|
300 + 300 Kg
|
|
Maximum leaf length
|
2.5 M + 2.5 M
|
3 M +3 M
|
|
Maximum piston stroke
|
400mm
|
600 mm
|
|
Maximum force
|
3000 N
|
3000 N
|
|
Opening time
|
10 - 15 sec
|
10 - 15 sec
|
|
Transmitter Distance
|
≤ 50 m
|
≤ 50 m
|
|
Max Recording of Transmitter
|
200 nos
|
200 nos
|
|
Working Cycle
|
90%
|
90%
|
|
Working temperature
|
-35°C ~ + 65°C
|
-35°C ~ + 65°C
|
|
Protection Class
|
IP 44
|
IP 44
|
|
Product Weight
|
18.5 Kg
|
19 Kg
|
