PRO
Sliding Gate Operator
Model No: AZSL100B / AZSL101B / AZSL102B /AZSL102 1B
Reliable and durable, with a sturdy aluminum base and integrated sensor. Features zero maintenance, directional flexibility with a selection switch, compact design for narrow spaces, soft start/stop, and an easily accessible emergency release. Ideal for residential, business centers, hotels, and hospitals.
Description

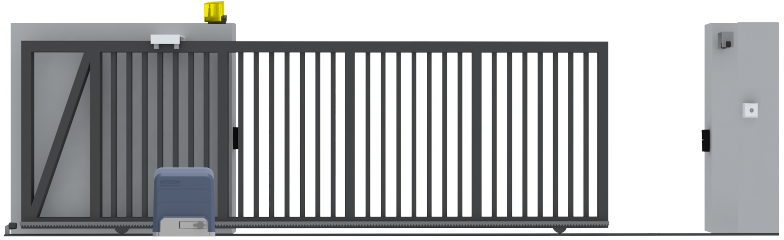

✔ Ground-mounted sliding gate operator is a motorized system designed to automate the operation of sliding gates
✔ Obstacle detection to stop or reverse the gate if an object is in its path, Safety edges or photocells for added protection.
✔ Remote controls for convenient operation, Keypads, intercoms, or Smartphone apps for access control.
✔ Allows manual operation in case of emergencies or power failures.
✔ Suitable for residential, business centre, hotel, hospital, etc..,
|
Technical Specification
|
AZSL100B
|
AZSL101B
|
AZSL102B
|
AZSL102 1B
|
|---|---|---|---|---|
|
Power supply
|
220V AC
|
220V AC
|
220V AC
|
220V AC
|
|
Motor power
|
370 W
|
400 W
|
500 W
|
750 W
|
|
Gate moving speed
|
11-13 m / min
|
11-13 m / min
|
11-13 m / min
|
11-13 m / min
|
|
Maximum weight of gate
|
600 Kg
|
1000 Kg
|
1500 Kg
|
2000 Kg
|
|
Transmitter Distance
|
≤ 30 m
|
≤ 30 m
|
≤ 30 m
|
≤ 30 m
|
|
Limit switch
|
Magnetic limit
|
Magnetic limit
|
Magnetic limit
|
Magnetic limit
|
|
Maximum Recording of Transmitter
|
25 nos
|
25 nos
|
25 nos
|
25 nos
|
|
Working Duty
|
S2
|
S2
|
S2
|
S2
|
|
Working temperature
|
-20°C ~ + 65°C
|
-20°C ~ + 65°C
|
-20°C ~ + 65°C
|
-20°C ~ + 65°C
|
|
Protection Class
|
IP 44
|
IP 44
|
IP 44
|
IP 44
|
|
Protection Weight
|
15 Kg
|
16 Kg
|
17 Kg
|
17.5 Kg
|
