SPARK
GARAGE DOOR OPERATOR
Model No: AZGDO210A/ AZGDO211A
The AUTOZON® garage door operator features advanced technology with real-time resistance detection, adjustable auto-close, and backup battery support. It includes LED lighting, multifunctional terminals for external devices, and a 3.9m sectional rail in chain or belt options.
Description
The AUTOZON® garage door operator features are the most advanced. eg: control unit with various optimized features.
Multiple highlight LED, makes the lighting even better.
Multi functional external terminal, can connect to various external devices like: photocell (optional), wall switch (optional) and many more.
During operation, the opener makes real-time detection of resistance to ensure precise positioning.
Auto-close time is adjustable and backup battery interface is available incase of power failure or low voltage.

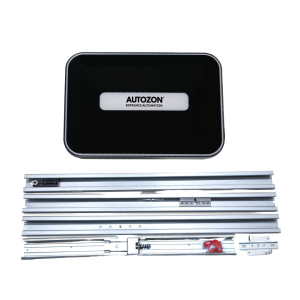

Steel sectional rail with chain and rail with belt (3.9 meter rail with 3 parts).
|
Technical Specification
|
AZGDO210A
|
AZGDO211A
|
|---|---|---|
|
Power supply
|
220 V - 240 V AC
|
220 V - 240 V AC
|
|
Motor power
|
24 V / 120 W
|
24 V / 200 W
|
|
Force
|
1200N
|
1800N
|
|
Max Door Area
|
16 Sqm
|
20 Sqm
|
|
Door Height
|
≥3 m
|
≥3 m
|
|
Running Speed
|
12-15 cm/s
|
18 cm/s
|
|
Remote Distance
|
≥30 m
|
≥30 m
|
|
Max Recording of Transmitter
|
25 nos
|
25 nos
|
|
Temperature
|
- 20° C + 50° C
|
- 20° C + 50° C
|
|
Protection class
|
Ip 20
|
Ip 20
|
|
Weight
|
6.5 Kg
|
7 Kg
|
