ROD
Boom Barrier
Model No: AZBBL115A
DC brushless motor with balanced linkage system, delay auto-close, obstacle reversal, battery backup, flexible boom options, and versatile use across residential, commercial, and industrial spaces.
Description
DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation.
Built-in delay auto-closing and reverse on an obstacle in case of resistance
When power o, the barrier can still work by adding 2 external DC12V batteries. And battery charging module is optional.

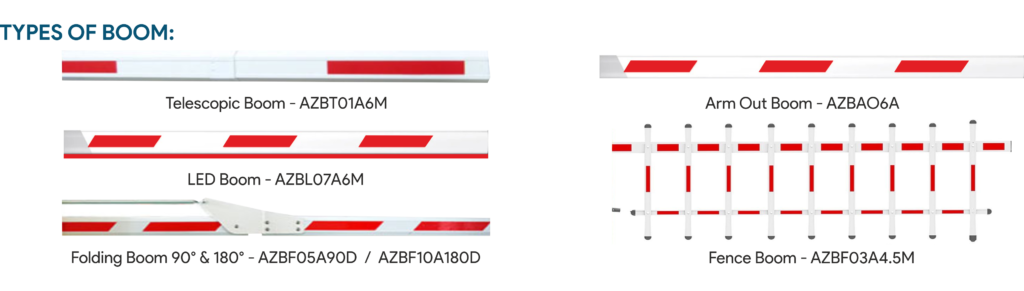

Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.
Suitable for residential, shopping mall, industries, business centre, hotels, hospitals etc.,
|
Technical Specification
|
AZBBL115A
|
|---|---|
|
Power supply
|
220 V - 240 V AC
|
|
Motor power
|
BL DC 24 V / 200 W
|
|
Maximum straight boom length
|
2 Sec ~ 6 Sec | upto 6 mtr
|
|
RPM
|
2000 r / min
|
|
Remote Distance
|
30 Mtr
|
|
Max Recording of Transmitter
|
20
|
|
Operation Cycle
|
3 Million
|
|
Working Duty
|
S1
|
|
Working temperature
|
-35°C ~ + 70°C
|
|
Housing dimension
|
315 * 222 * 946
|
|
Weight not including boom barrier
|
32 Kg
|
|
Protection class
|
IP 54
|
